Click to enlargeNW40 To 1/8" Female NPT
Stainless Steel

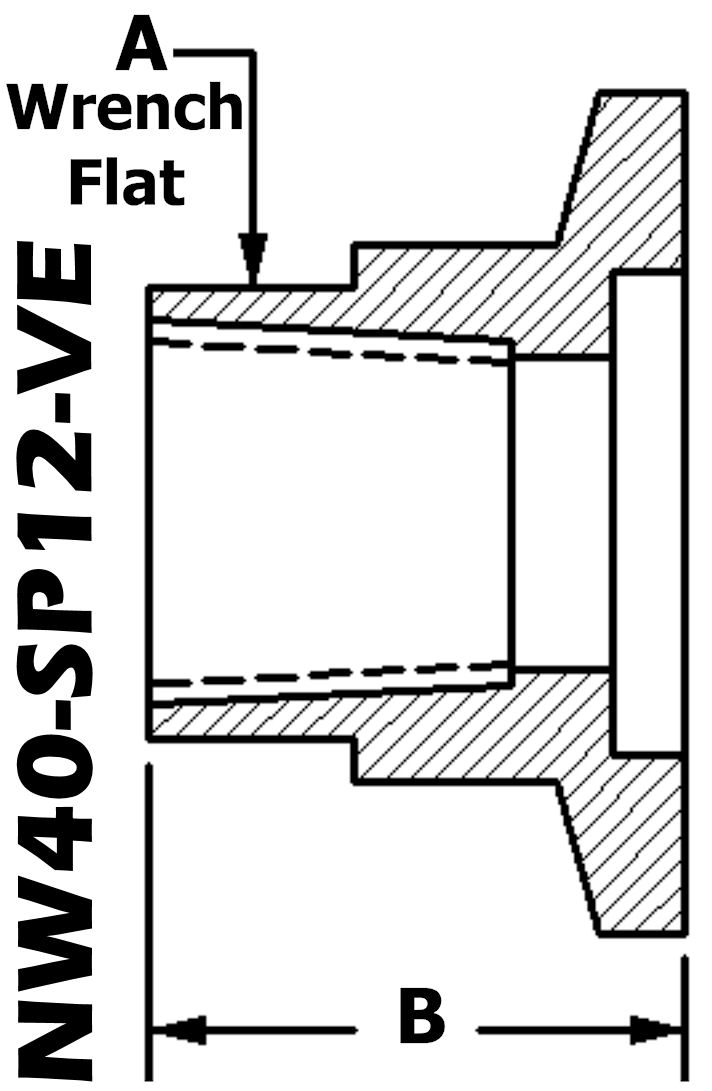

A: 1.25"
B: 1.00"
Vacuum Essential

NW40-SP12-VE
NW40 to 1/8" Female NPT Adapter
Vacuum Essential

• NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"
• 304 Stainless

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF

Use With Teflon Tape
Fits Most Thermocouple Vacuum Gauge Tubes

NW40-150-SP12-VE


NW40 To 1/8" NPT (Female)
NW40-SP12-VE

NW40-SP12-VE$39.00

Click to enlarge
Click to enlarge
All NW40 Hardware


Teflon Tape - For Use With 1/8" NPT


Click to enlarge
Click to enlarge
91-S Silicone Vacuum Grease


NW to Male NPT



***This Vacuum Essential Includes***
• NW40 to 1/8" Female NPT, Stainless
1-Aluminum Wing Clamp (NW40-150-CW)
1-Stainless/Viton Centering Ring (NW40-150-SR-V)
