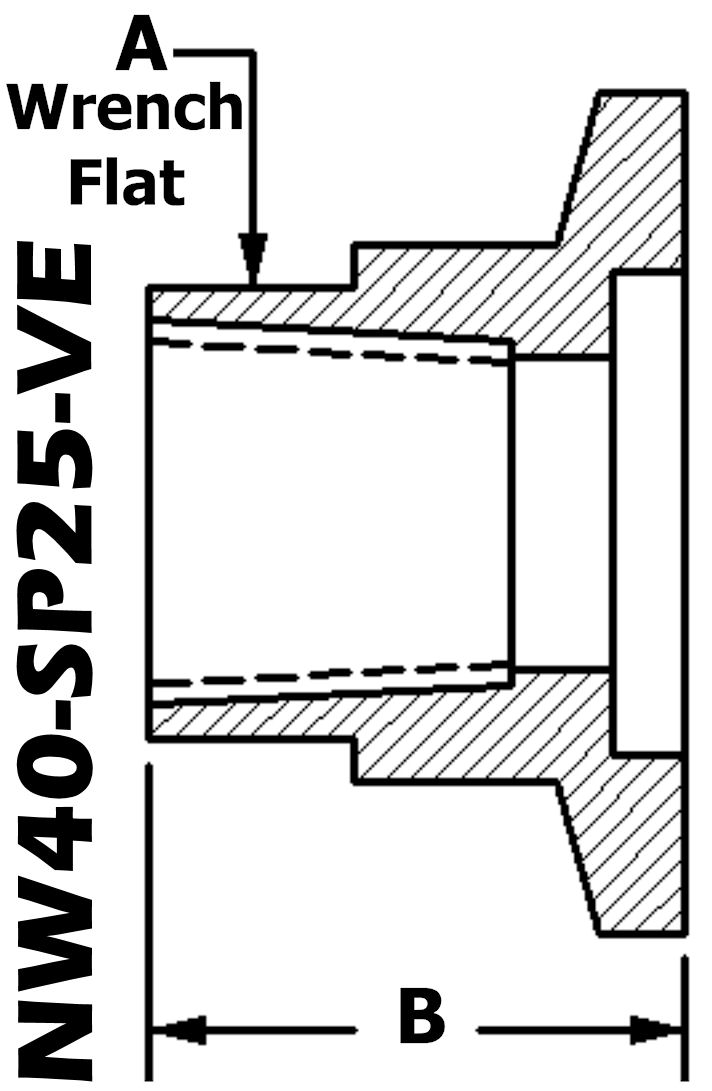

Click to enlargeNW40 To 1/4" Female NPT
A: 1.25"
B: 1.00"
Vacuum Essential

NW40-SP25-VE
NW40 to 1/4" Female NPT Adapter
Vacuum Essential

• Adapter KF40 to 1/4 in. NPT-F Pipe
• NW40 Female National Pipe Thread (FNPT)
• 304 Stainless Fitting

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF
NW40-150-SP25-VE


NW40 To 1/4" NPT (Female)
NW40-SP25-VE

NW40-SP25-VE$39.00

Click to enlarge
Click to enlarge
NW Female NPT


All NW40 Hardware


Click to enlarge
Click to enlarge
Teflon Tape - For Use With 1/4" NPT & Larger


91-S Silicone Vacuum Grease


Click to enlarge
Click to enlarge
NW40 Male NPT (Stainless)


NW40 Male NPT (Aluminum)



***This Vacuum Essential Includes***
• NW40 to 1/4" Female NPT, Stainless
1-Aluminum Wing Clamp (NW40-150-CW)
1-Stainless/Viton Centering Ring (NW40-150-SR-V)

Contact LDS Vacuum with any questions:
Phone (407)862-4643 via Fax (407)862-8723 or
info@ldsvacuum.com

LDS Vacuum Products is a 100% woman owned company and
certified Woman Owned Small Business (WOSB)
