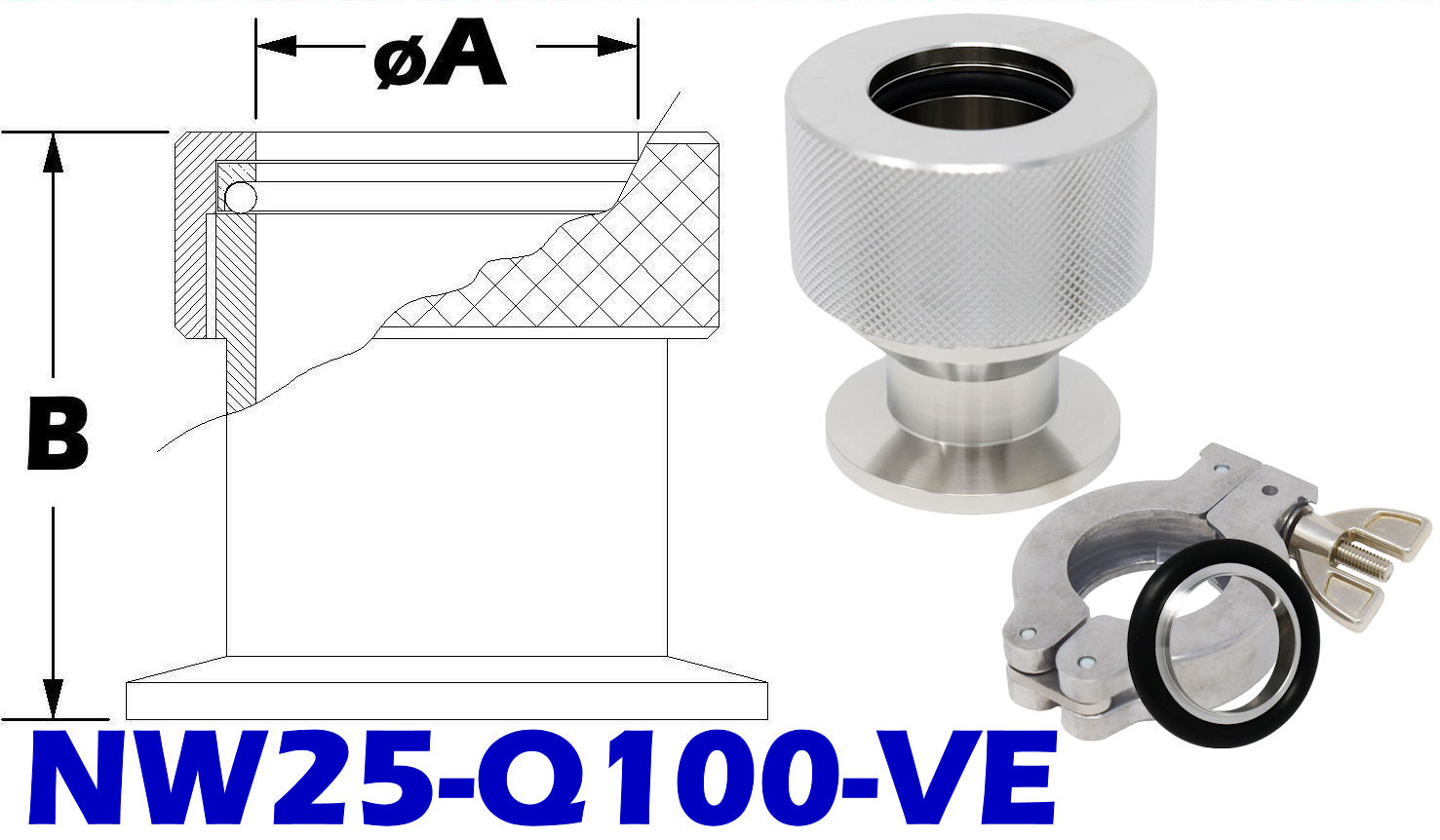

Click to enlargeNW25 to 1.00" Quick Coupling
304 Stainless
A: 1.02"
B: 2.0"
*Vacuum Essential*

NW25-Q100-VE
NW25 to 1" Quick Connect Coupling
NW25 (KF25) Series Flange OD: Ø1.57"
Vacuum Essential

• Compression Type Quick Disconnect
• Compression Port
• For tube connections & tubulated gauges
• 304 Stainless

NW25 High Vacuum Flange Equivalents
KF25, KF-25, K100, NW-25, QF25, ISO-QF

Vacuum Essentials Include:
NW25-Q100 Quick Connect Vacuum Coupling
(1) Stainless Viton Centering Ring
(1) Aluminum Wing Nut Clamp


NW25 Quick Coupling To
1.00" Tube Size
(NW25-Q100-VE)

NW25-Q100-VE$84.00

Click to enlarge
Click to enlarge
100 Series (1.00") O-Ring, Viton


All NW25 Hardware


Click to enlarge
Click to enlarge
NW Quick Couplings (ALL)


Quick Couplings (ALL)



**This Vacuum Essential Includes**
NW25 Quick Coupling, NW25-Q100
1-Aluminum Wing Clamp (NW25-100-CW)
1-Stainless/Viton Centering Ring (NW25-100-SR-V)
