NW50 Coaxial (Refillable) Foreline Trap <br> CFTR-NW50x4-STY2

CFTR-NW50x4-STY2
NW50 Coaxial Foreline Vacuum Pump Trap with Refillable Stainless Mesh Media (1) Supplied
• 4" OD Body

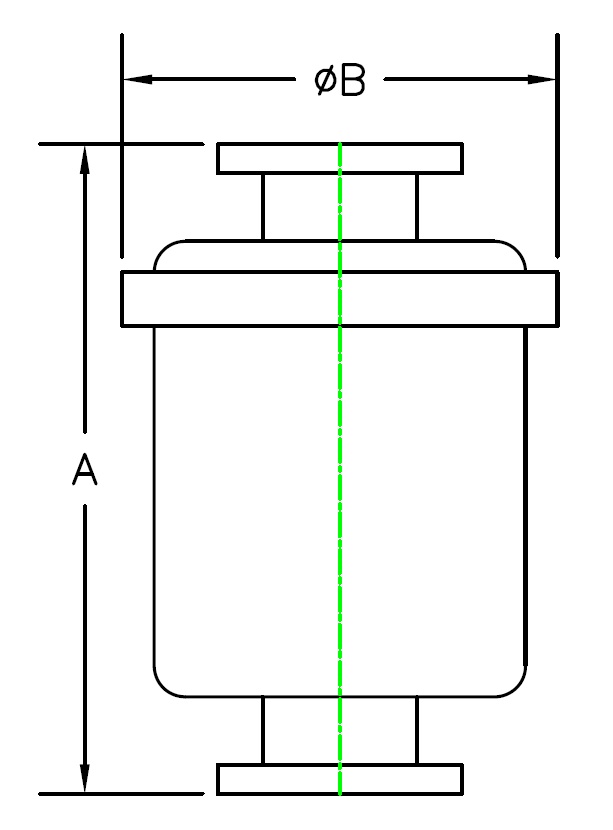

• A: 10.30"
• B: 4.80"
• NW50 Foreline Vapor Trap
• Metal Wool Element Trap
• Tumble Finish

NW50 Flange OD: Ø2.95"
• NW50 Tube OD: 2"

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF
CFTR-NW50x4-STY2 Compare to: CFTR-NW50x4 TAR4CS200QF FCT-4-2002-NWB 7500144 VSRC-400-QF50-S

STY2 Series Replacement Media

One Supplied With Trap Purchase

All NW50 Hardware

Coaxial Foreline Refillable Traps (CFTR Series)
NW (KF, QF) Series Flanges
Coaxial Metal Sieve Trap
Replacement Stainless Media Supplied In Trap
• Trap Body: 304 Stainless Steel
• Flanges: 304 Stainless Steel
• Sieve: 304 Stainless Steel
• O-Ring: Viton (FKM)
• Vacuum range: >1 x 10-8 Torr
• Temperature range: -20°C to 150°C
• Body: 4" OD

Coaxial Foreline Refillable Traps (metal sieve traps) use a fibrous stainless steel mesh for removal of hydrocarbons or large particulates. The coaxial design provides maximum filtering and flow. The two piece design allows for easy cleaning and removal/replacement of the filter element.

Will reduce or eliminate the undesirable effects of mechanical vacuum pump oil backstreaming. The Assimilation trap is one of the most effective, durable and easy to use foreline traps.

Construction is of 304 stainless steel with an easy open body by way of a machined flange set held together with a unique quick toggle stainless steel clamp.
