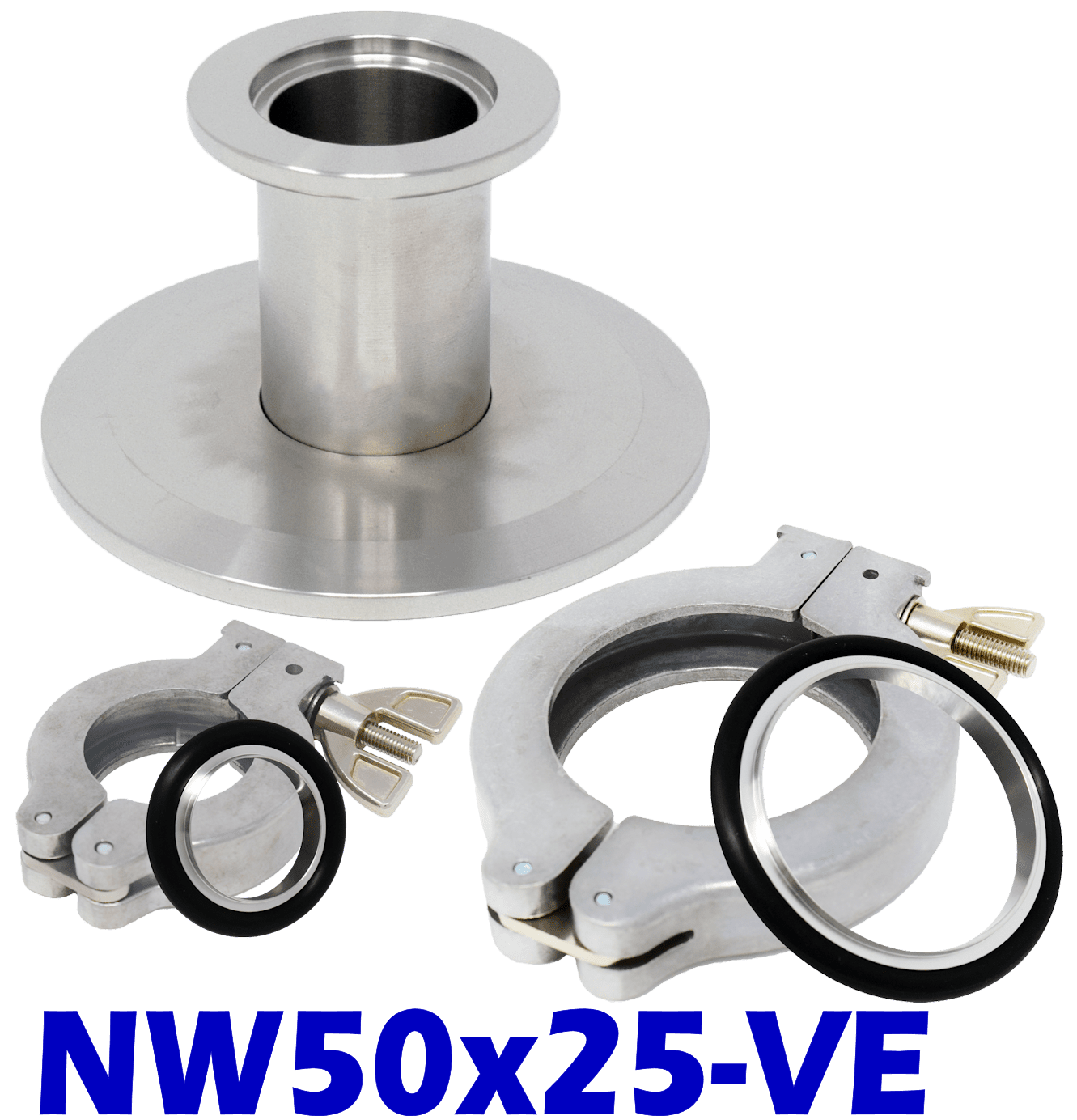

Click to enlargeNW50 To NW25 Straight Reducer Nipple

NW50x25-VE
NW50 to NW25 (KF50 to KF25)
Straight Reducer (Reducing Nipple)
• 304 Stainless
• 1.70" OAL
Vacuum Essential

NW25 (KF25) Flange OD: Ø1.57"
• NW25 Centering Ring Counter Bore: 1.03"

NW25 High Vacuum Flange Equivalents
KF25, KF-25, K100, NW-25, QF25, ISO-QF

NW50 (KF50) Flange
• NW50 (KF50) Flange OD: Ø2.95"

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF


NW50 To NW25 Reducer
(NW50x25-VE)
NW50x25-VE$64.00

Click to enlarge
Click to enlarge
All NW25 Hardware


All NW50 Hardware


Click to enlarge
Custom Adapters & Nipples



NW25 Flange OD: 1.57"
NW50 Flange OD: 2.95"
**This Vacuum Essential Includes**
NW50x25

Aluminum Wing Clamps, 1 Each
(NW25-100-CW)
(NW50-200-CW)

Stainless/Viton Centering Rings, 1 Each
(NW25-100-SR-V)
(NW50-200-SR-V)

Contact LDS Vacuum with any questions:
Phone (407)862-4643 via Fax (407)862-8723 or
info@ldsvacuum.com

LDS Vacuum Products is a 100% woman owned company and
certified Woman Owned Small Business (WOSB)
The logos and/or trademarks appearing on this page are not owned by or registered to LDS but, rather, designate products sold by LDS, and are owned and/or registered to the manufacturers or suppliers of the products.
Viton® is a registered trademark of DuPont Dow Elastomers
Images Shown May Be For Reference Only
