NW50 To ISO63 304 Stainless
*Vacuum Essential*

NW50xISO63-VE

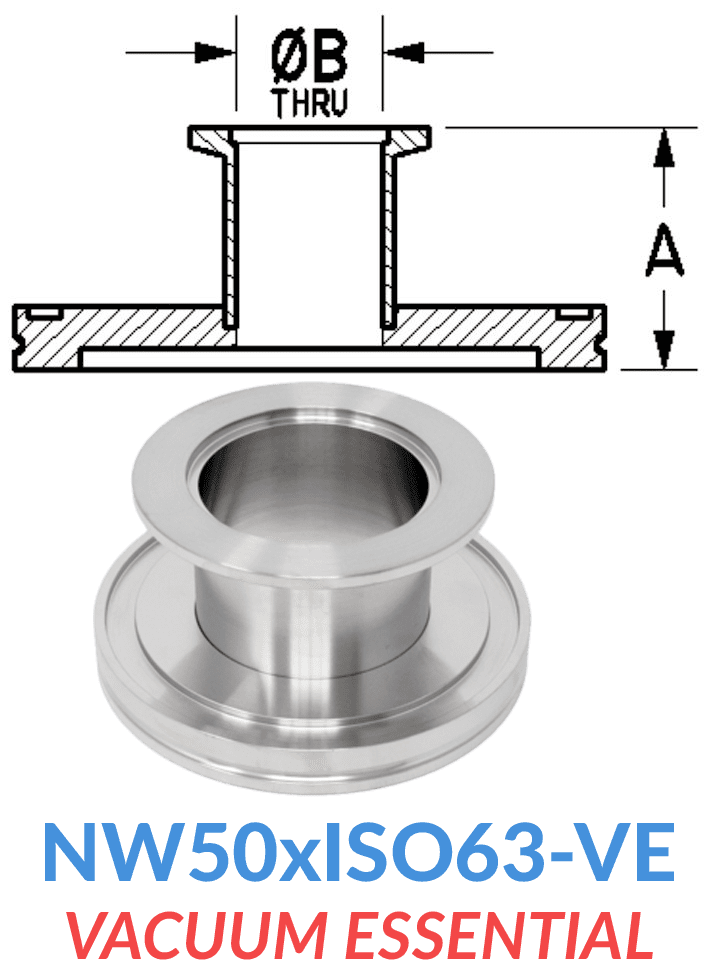

NW50xISO63 Straight Reducer

• Straight Reducing Nipple
• ISO-MF to ISO-KF Straight Adapter
• ISO to NW, Flange to Flange (ISO63xNW50)
• High Vacuum Fitting
• OD Polish
Vacuum Essential

NW50 to ISO63 Straight Reducing Nipple Adapter

ISO63 (ISO-K) Series
• High Vacuum Flange OD: Ø3.74"
• ISO-K Claw Clamp Style

ISO63 High Vacuum Flange Equivalents:
ISO-63, LF63, NW63, NW-63, Large Flange,
ISO-LF, ISO-K, ISO-MF

NW50 (KF50, KF-50, QF50) Series Flanges
• NW50 Vacuum Flange OD: Ø2.95"

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF
ISO63xNW50-VE


Straight Reducer (NW50xISO63-VE)
NW50xISO63-VE$156.00

Click to enlarge
Click to enlarge
NW50 To ISO Straight Reducers


NW Series to ISO Conical Reducers


Click to enlarge
Click to enlarge
All NW50 Hardware


ISO63 Series Hardware



LDS Custom Nipple Fabricator

***This Vacuum Essential Includes***
NW50 to ISO63 Straight Reducer: NW50xISO63

ISO63 Series
4 Aluminum Double Claw Clamps ISO63-100-DC
1 Stainless/Viton Centering Ring ISO63-250-SR-V

NW50 Series
1 Aluminum Wing Clamp NW50-200-CW
1 Stainless/Viton Centering Ring NW50-200-SR-V
