Straight Reducer <br> (NW50xISO200-VE)

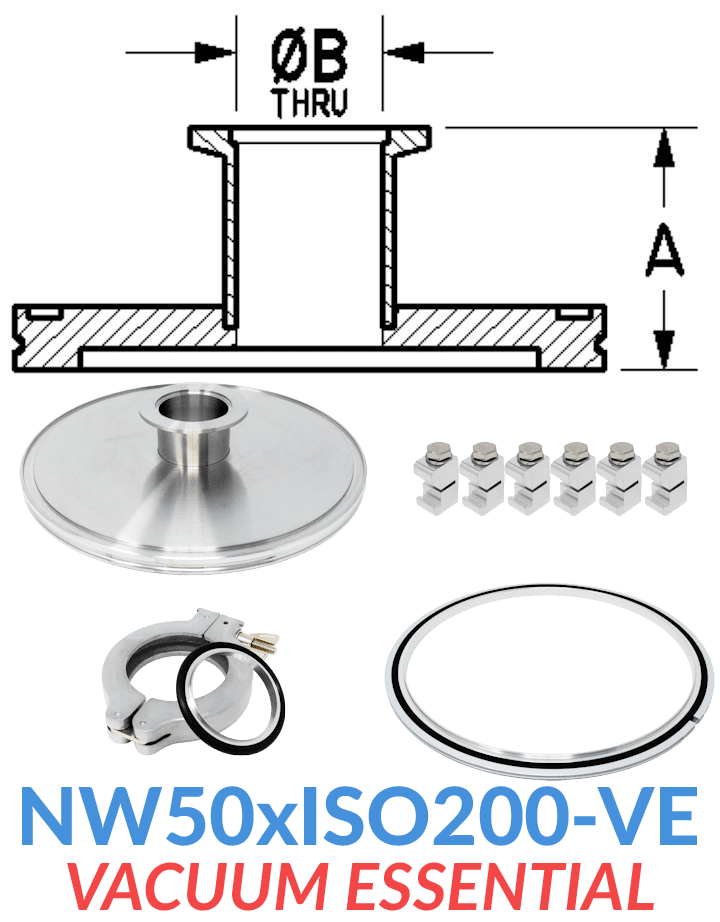

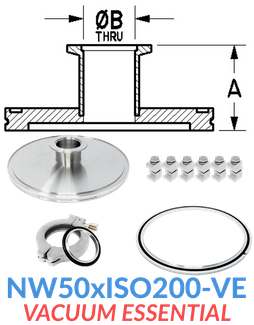

NW50 To ISO200 Straight Reducer
A: 1.82"
B: 1.87"
2" Tube OD
304 Stainless
*Vacuum Essential*

NW50xISO200-VE
NW50xISO200 Straight Reducer
• Straight Reducing Nipple
• ISO-MF to ISO-KF Straight Adapter
• ISO to NW, Flange to Flange (ISO200xNW50)
• High Vacuum Fitting
• OD Polish
Vacuum Essential

NW50 to ISO200 Straight Reducing Nipple Adapter

ISO200 (ISO-K) Series
• High Vacuum Flange OD: Ø9.45"
• ISO-K Claw Clamp Style

ISO200 High Vacuum Flange Equivalents:
ISO-200, LF200, NW200, NW-200, Large Flange,
ISO-LF, ISO-K, ISO-MF

NW50 (KF50, KF-50, QF50) Series Flanges
• NW50 Vacuum Flange OD: Ø2.95"

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF



NW50 To ISO Straight Reducers		NW Series to ISO Conical Reducers



All NW50 Hardware		ISO200 Series Hardware

***This Vacuum Essential Includes***
NW50 to ISO200 Straight Reducer: NW50xISO200

ISO200 Series
6 Aluminum Double Claw Clamps ISO160-250-DC
1 Stainless/Viton Centering Ring ISO200-800-SR-V

NW50 Series
1 Aluminum Wing Clamp NW50-200-CW
1 Stainless/Viton Centering Ring NW50-200-SR-V

Contact LDS Vacuum with any questions:
Phone (407)862-4643 via Fax (407)862-8723 or
info@ldsvacuum.com

LDS Vacuum Products is a 100% woman owned company and
certified Woman Owned Small Business (WOSB)
The logos and/or trademarks appearing on this page are not owned by or registered to LDS but, rather, designate products sold by LDS, and are owned and/or registered to the manufacturers or suppliers of the products.
Viton® is a registered trademark of DuPont Dow Elastomers
