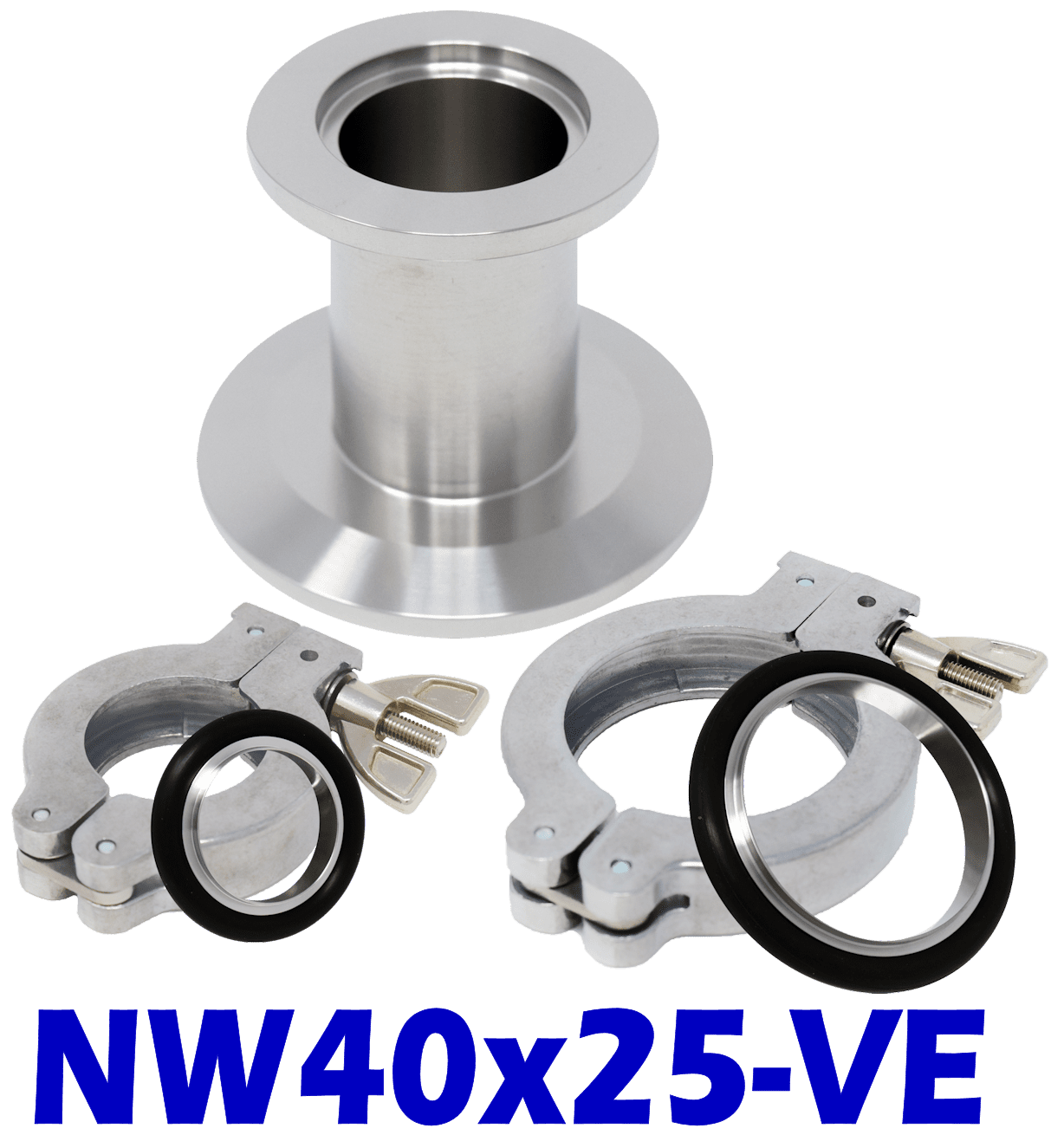

Click to enlargeNW40 To NW25
Straight Reducer Nipple

NW40x25-VE
NW40 to NW25 (KF40 to KF25)
Straight Reducer (Reducing Nipple)

• NW40xNW25, KF40xKF25, QF40xQF25
• NW25xNW40, KF25xKF40, QF25xQF40
• 304 Stainless Steel
• 1.70" OAL
Vacuum Essential

NW25 (KF25) Flange OD: Ø1.57"
• NW25 Centering Ring Counter Bore: 1.03"

NW25 High Vacuum Flange Equivalents
KF25, KF-25, K100, NW-25, QF25, ISO-QF


NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF

Flange to Flange Adapter Fitting


NW40 To NW25 Reducer
(NW40x25-VE)

NW40x25-VE$61.00

Click to enlarge
Click to enlarge
All NW25 Hardware


All NW40 Hardware


Click to enlarge
Custom Adapters & Nipples



NW25 Flange OD: 1.57"
NW40 Flange OD: 2.18"

**This Vacuum Essential Includes**
NW40x25

Aluminum Wing Clamps, 1 Each
(NW25-100-CW)
(NW40-150-CW)

Stainless/Viton Centering Rings, 1 Each
(NW25-100-SR-V)
(NW40-150-SR-V)
