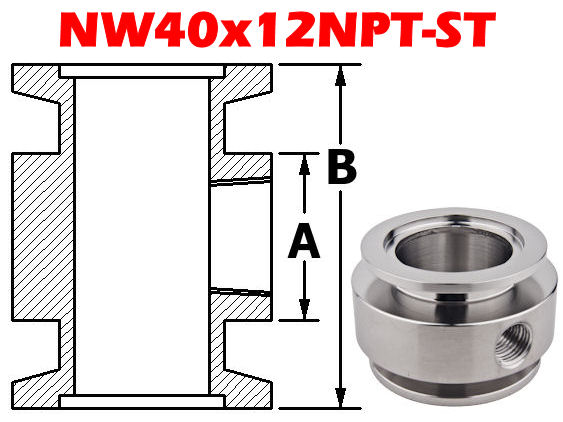

NW40 Adaptive Tee To 1/8" Female NPT

NW40x12NPT-ST
NW40 (KF40) Adaptive Tee, Stainless

• 1/8" Female NPT
• Female National Pipe Thread Adapter
• A: 0.76"
• B: 1.57"

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Tube OD: 1.50"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF

Former PN: NW40x1/8NPT-ST
Images Shown For Reference Only

NW40x12NPT-ST Compare to: QF40x1/8NPT-ST 100319405 4000223 P101333


NW40 to 1/8" NPT Female Adaptive Tee
(NW40x12NPT-ST)

NW40x12NPT-STPrice: $86.00Sale: $51.00

Click to enlarge
Click to enlarge
Teflon Tape - For Use With 1/8" NPT


91-S Silicone Vacuum Grease


Click to enlarge
Click to enlarge
All NW40 Hardware


Adaptive Tees (All)



NW40 (KF40) Flange OD: Ø2.18"
• NW40 Tube OD: 1.50"
• NW40 Centering Ring Counter Bore: 1.62"

***NW40 Flange Accessories Available Below***
NW40 Centering Rings
NW40 Clamps, All Types
NW40 Plastic Caps
