Conflat and NW
NON-Reducing Crosses

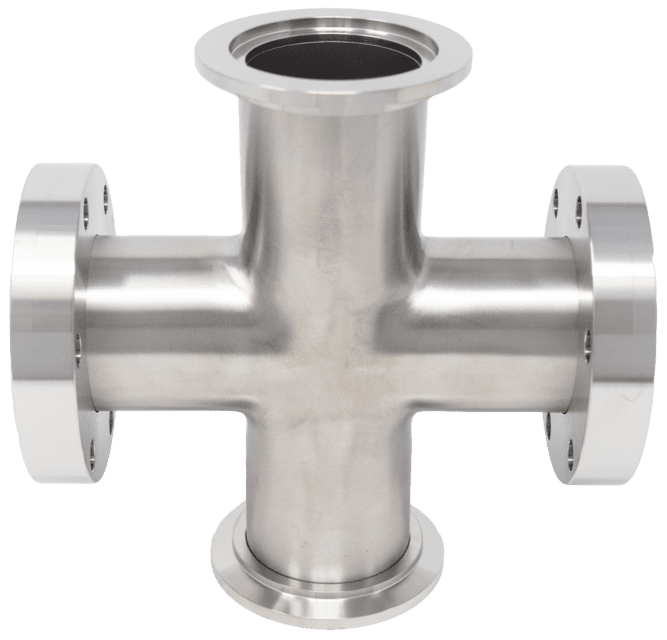

Non-Reducing Cross
Crosses With The Same Size Tube OD

• NW (KF) to Conflat Flange
• All Conflat Flanges (CF) Are Rotatable
• 304 Stainless
• High Vacuum Adapters

Non-Reducing Vacuum Fittings - NW to Conflat Flange

NW16 and 1.33" OD CF: 0.75" Tube OD (6 Bolt Holes)

NW25 and 2.12" OD CF: 1.00" Tube OD (4 Bolt Holes)

NW40 and 2.75" OD CF: 1.50" Tube OD (6 Bolt Holes)

NW50 and 3.38" OD CF: 2.00" Tube OD (8 Bolt Holes)

NW16 & 1.33" OD Conflat Non-Reducing Cross

NW25 & 2.12" OD Conflat Non-Reducing Cross

NW40 & 2.75" OD Conflat Non-Reducing Cross

NW50 & 3.38" OD Conflat Non-Reducing Cross
