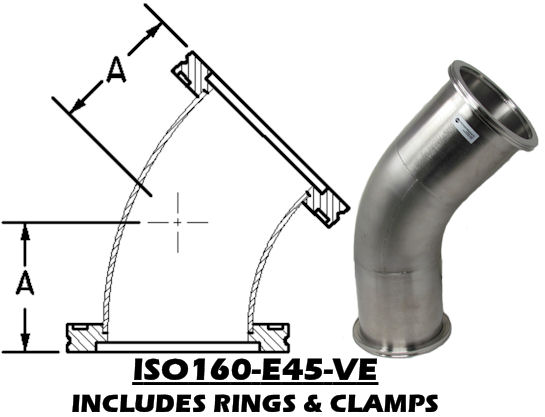

45 Elbow, ISO160 Flanges
*Vacuum Essential*

ISO160-E45-VE
ISO160 High Vacuum Elbow
45 Degree Radius Elbow
Vacuum Essential

• 304 Stainless
• 13 lbs.
• A: 9.71"

ISO160 (ISO-K) Series
• High Vacuum Flange OD: Ø7.09"
• Tube OD: 6.00"
• ISO-K Claw Clamp Style

ISO160 High Vacuum Flange Equivalents:
ISO-160, LF160, NW160, NW-160, Large Flange,
ISO-LF, ISO-K, ISO-MF


UNPOLISHED, No Cancel/Return Item
ISO160-600-E45-VE


ISO160 - 45 Elbow
ISO160-E45-VE

ISO160-E45-VE$591.00

Click to enlarge
Click to enlarge
ISO160 Series Hardware


45 Elbows, ISO



***This Vacuum Essential Includes***
45 Degree Radius Elbow, ISO160
8 AL Double Claw Clamps ISO160-250-DC
2 SS/Viton Centering Rings ISO160-600-SR-V
