Click to enlarge45° Radius Elbow, ISO100
*Vacuum Essential*

ISO100-E45-VE

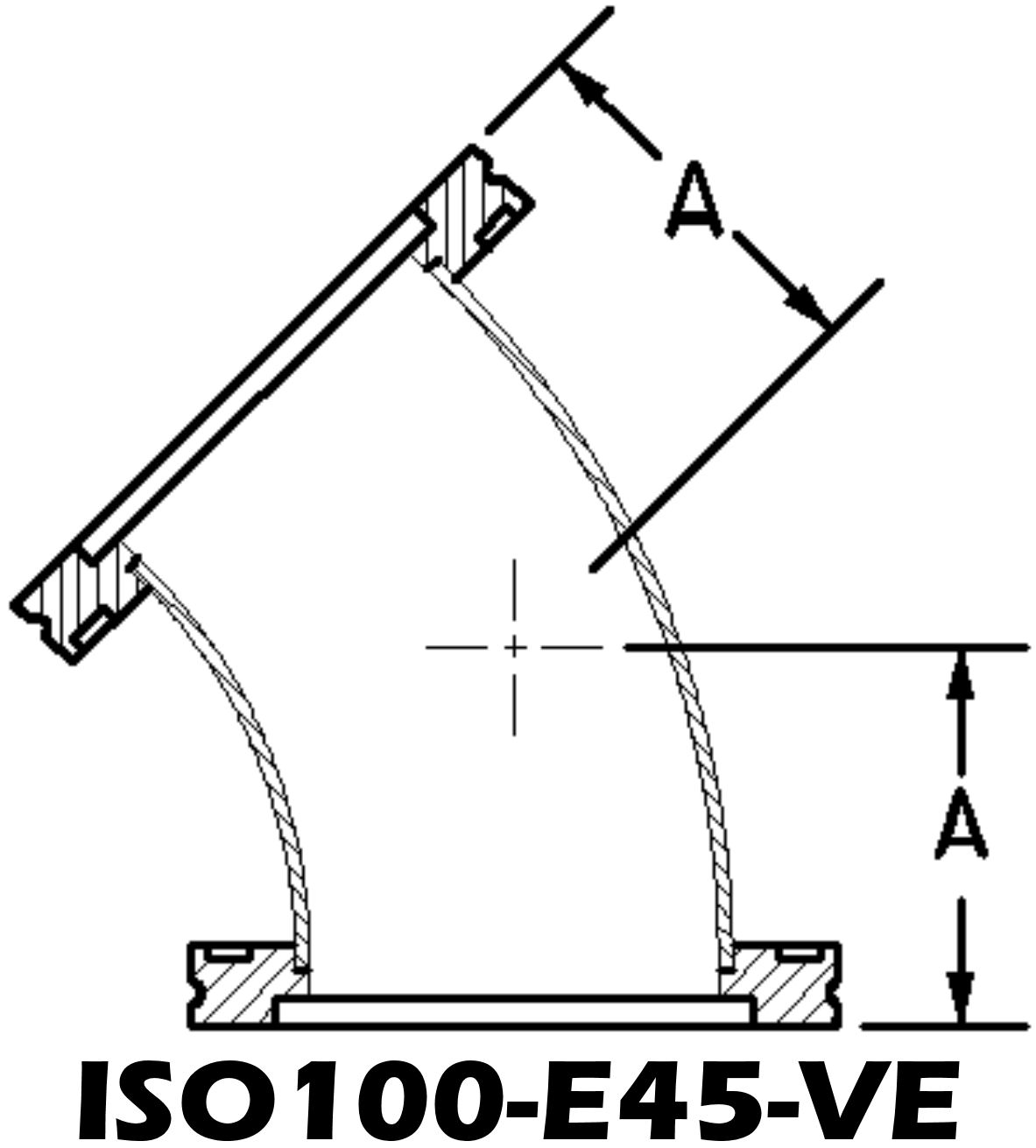

45 Degree Radius Elbow, ISO100 (LF100)
ISO100 (LF100) Vacuum Flange OD: 5.12"
Vacuum Essential

• 304 Stainless
• OD Polish
• 9 lbs.
• A: 5.02"

ISO100 High Vacuum Flange Equivalents:
ISO-100, LF100, NW100, NW-100, Large Flange, ISO-K

Vacuum Essentials Include:
• ISO100-400-E45 Elbow
• 2 Stainless/Viton Centering Rings
• 8 Aluminum Double Claw Clamps


ISO100 - 45° Elbow
ISO100-E45-VE

ISO100-E45-VE$333.00

Click to enlarge
Click to enlarge
ISO100 Series Hardware


45° Elbows, ISO



ISO100 Flange OD: 5.12"
Tube OD: 4.00"

*** Vacuum Essentials Include ***
45 Degree Radius Elbow, ISO100
8 AL Double Claw Clamps ISO63-100-DC
2 SS/Viton Centering Rings ISO100-400-SR-V
