ISO80 to NW40 <br> Reducing Tee <BR> (ISO80xNW40-T)

ISO80xNW40-T
ISO80 to NW40 (KF40) Reducing Tee

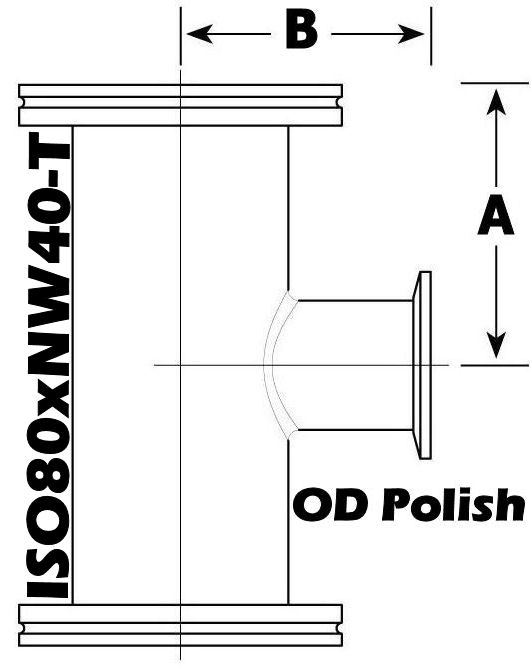

ISO80xNW40 Reducer Tee Adapter
• A: 3.50"
• B: 3.15"
• OD Polish
Flange to Flange Adaptive Reducing Tee

ISO80 (ISO-K) Series
• (2) Each
• High Vacuum Flange OD: Ø4.33"
• Tube OD: 3.00"
• ISO-K Claw Clamp Style

ISO80 High Vacuum Flange Equivalents:
ISO-80, LF80, NW80, NW-80, Large Flange,
ISO-LF, ISO-K, ISO-MF

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Tube OD: 1.50"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF
ISO80xNW40-T Compare to: L300-3-K150 824043 3TA-NW-40-ISO-80-OF P103453 ISO80xNW40 NW40xISO80 4500425 LF80XQF40-T ISO80xKF40 ISO80x40-T
