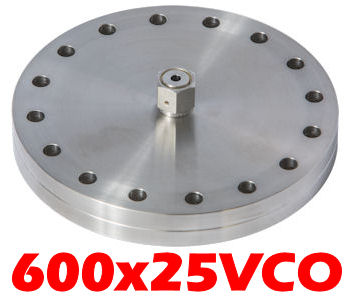

6.00" OD Conflat Flange to 1/4" Female VCO <br> 600x25VCO-CO

600x25VCO-CO
6.00" OD Conflat Flange to 1/4" VCO Female
Closeout Inventory
• Tube OD: 0.25"
• Flange OD: 6.00"

6" OD CF VCO4 Female (VCO-F) Adapter
6.00" OD Conflat Flange (CF) Series
• 304 Stainless
• Non-Rotatable
• 0.332" Bolt Hole Diameter

6" OD Conflat (600CFF) Equivalents
• CF100, CF600, DN100CF, NW100CF, 600CF

High Vacuum Fitting
600x25VCO



6.00" OD Conflat Series Hardware		CF to VCO-Female (All)



CF to VCO-Male (All)

VCO Reference Guide
1/8” = VCO2		1/2" = VCO8
1/4" = VCO4		3/4" = VCO12
3/8” = VCO6		1” = VCO16

**6.00" OD Conflat Flange Accessories Below**
6.00" OD Conflat Flange - Bolt Kits
6.00" OD Conflat Flange - Copper Gaskets
6.00" OD Conflat Flange - Viton Gaskets
6.00" OD Conflat Flange – Plastic Caps
