Click to enlarge8" OD Conflat Flange
Rotatable
6.00" OD Tube

800-600-R-T
8.00" OD Conflat Flange to 6" Tube OD
Rotatable, 20-Tapped Holes
6" Bore Size

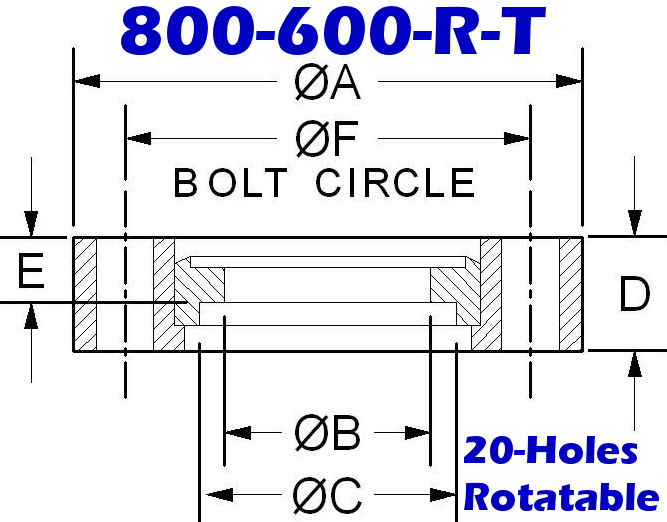

• Weight: 6.5 lbs
• A: 7.97"
• B: 5.92"
• C: 6.02"
• D: 0.94"
• E: 0.50"
• F: 7.13"

8.00" OD CF Conflat Flange
• 20 Tapped Holes (5/16-24 Thread)

• Rotatable
• 304 Stainless

8" OD CFF Conflat Flange (CF800) Equivalents:
DN160CF, DN150CF, NW150CF, CF150, CF160,
Del Seal, 800CF

High Vacuum & Ultra High Vacuum (UHV) Flanges
800-600-R-T Compare to 800-600-RT F0800X600RT 800-600RT 100887007 F800600RT 120031 P104697 800600RT 5000155


8.00" OD Conflat Flange
6.00" OD Tube
(800-600-R-T)

800-600-R-TPrice: $423.84Sale: $228.00

Click to enlarge
Click to enlarge
8.00" OD Conflat Series Hardware


8.00" OD Conflat
Double Sided



Click to enlarge
Click to enlarge
8.00" OD Conflat
Non-Rotatable
THRU Hole Series



8.00" OD Conflat
Rotatable
THRU Hole Series



Click to enlarge
Click to enlarge
8.00" OD Conflat
Non-Rotatable
TAPPED Hole Series



8.00" OD Conflat
Rotatable
TAPPED Hole Series




**8.00" OD Conflat Flange Accessories Below**
8.00" OD Conflat – TAPPED Flange Bolt Kits
8.00" OD Conflat Flange - Copper Gaskets
8.00" OD Conflat Flange - Viton Gaskets
8.00" OD Conflat Flange – Plastic Caps
