Click to enlarge8.00" OD Conflat Flange Rotatable 20-Thru Holes 6" OD Tube

800-600-R
• 8.00" OD Conflat to 6" Bored Blank
• 6" OD Tube
• Rotatable
• 20 Clearance Holes (0.332 Diameter)
• Weight: 6 lbs

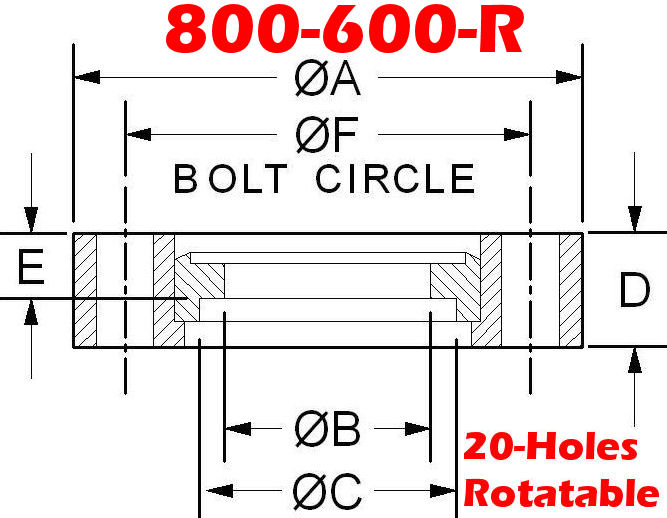

• A: 7.97"
• B: 5.805"
• C: 6.02"
• D: 0.94"
• E: 0.50"
• F: 7.13"

8" OD CFF Conflat Flange (CF800) Equivalents:
DN160CF, DN150CF, NW150CF, CF150, CF160,
Del Seal, 800CF

High Vacuum & Ultra High Vacuum (UHV) Flanges
F08000600RC4 100031 F800600R CF800R-600 5000153 P104709 100887005 800-600R 800600R


8.00" OD Conflat Flange
6.00" OD Tube
(800-600-R)
800-600-RPrice: $450.00Sale: $258.00

Click to enlarge
Click to enlarge
8.00" OD Conflat Series Hardware


8.00" OD Conflat
Double Sided


Click to enlarge
Click to enlarge
8.00" OD Conflat
Non-Rotatable
THRU Hole Series


8.00" OD Conflat
Rotatable
THRU Hole Series


Click to enlarge
Click to enlarge
8.00" OD Conflat
Non-Rotatable
TAPPED Hole Series


8.00" OD Conflat
Rotatable
TAPPED Hole Series



**8.00" OD Conflat Flange Accessories Below**
8.00" OD Conflat Flange - Bolt Kits
8.00" OD Conflat Flange - Copper Gaskets
8.00" OD Conflat Flange - Viton Gaskets
8.00" OD Conflat Flange – Plastic Caps
