6.00" OD Conflat BLANK <br> (600-000-R)

600-000-R
6.00" OD CF Conflat Flange
Rotatable, Through Holes
BLANK

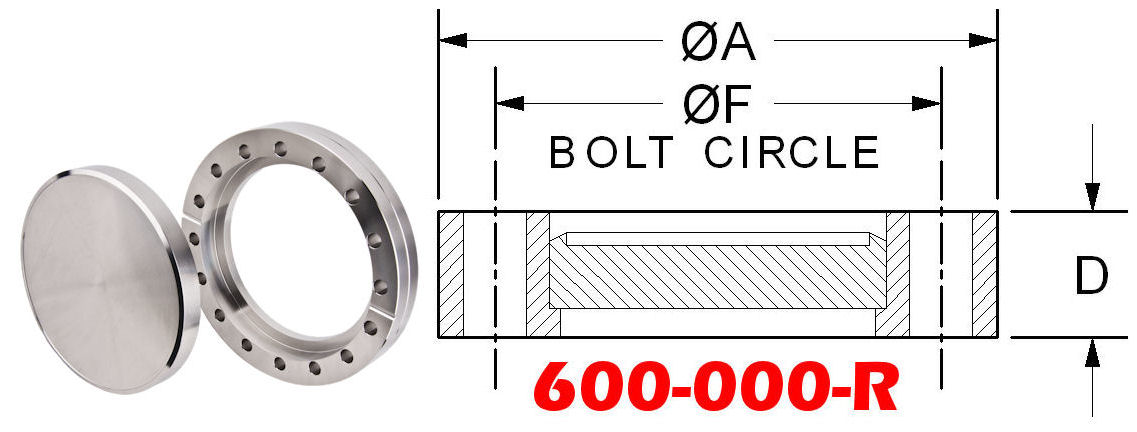

• Weight: 6 lbs
• A: 5.97"
• D: 0.84"
• F: 5.128"

6.00" OD CF Conflat Flange
DN100CF Rotatable Blank
• 16 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter
• 304 Stainless

6" OD Conflat (600CFF) Equivalents
CF100, CF600, DN100CF, NW100CF, 600CF Del Seal

High Vacuum and Ultra High Vacuum (UHV) Flange 600-000-R Compare to: F0600X000R 600-000R P104586 100886004 100025 F600000R F06000000RC4 600000R 5000132 83525



6.00" OD Conflat Double Sided		6.00" OD Conflat Series Hardware



6.00" OD Conflat Non-Rotatable THRU Hole Series		6.00" OD Conflat Rotatable THRU Hole Series



6.00" OD Conflat Non-Rotatable TAPPED Hole Series		6.00" OD Conflat Rotatable TAPPED Hole Series

**6.00" OD Conflat Flange Accessories Below**
6.00" OD Conflat Flange - Bolt Kits
6.00" OD Conflat Flange - Copper Gaskets
6.00" OD Conflat Flange - Viton Gaskets
6.00" OD Conflat Flange – Plastic Caps
