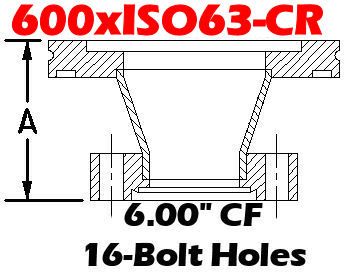

Click to enlargeISO63 to 6.00" OD Conflat Conical Reducer

600xISO63-CR
ISO63 to 6.00" OD Conflat Flange
Flange to Flange
Conflat to ISO High Vacuum Adapter
Conical Reducing Nipple
• Weight: 5.50 lbs.
• A: 4.31"
• 304 Stainless

ISO63 (ISO-K) Series
• High Vacuum Flange OD: Ø3.74"
• Tube OD: 2.50"
• ISO-K Claw Clamp Style

ISO63 High Vacuum Flange Equivalents:
ISO-63, LF63, NW63, NW-63, Large Flange, MF


6.00" OD Conflat Flange (CF):
• 4" Tube OD
• 16-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter
• Non-Rotatable

6" OD Conflat (600CFF) Equivalents
CF100, CF600, DN100CF, NW100CF, 600CF Del Seal
Compare to: ISO63x600-CR-VE 600xISO63-CR-VE P103560 CF600XLF63-400X250-CR-4.31 5000719 600XLF63-CR ANC-600-ISO-63-OF


6.00" OD CF to ISO63
Conical Reducer
(600xISO63-CR)
600xISO63-CRPrice: $580.24Sale: $298.00

Click to enlarge
Click to enlarge
ISO63 Series Hardware


6.00" OD Conflat Series Hardware


Click to enlarge
Click to enlarge
Custom Adapters and Nipples


ISO x Conflat Adapters
