Click to enlargeReducing Tee
6.00" OD Conflat To NW40

600xNW40-RWT
NW40 (KF40) to 6" OD Conflat Flange (CF)
NW to Conflat Reducing Tee
• (2) CF x (1) NW

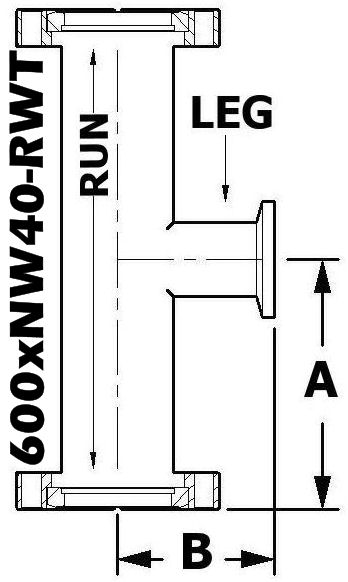

• A: 4.05"
• B: 3.67"
• Flange to Flange Reducer Tee
• High Vacuum Adapter
OD Polish

NW40 High Vacuum Flange Series
• NW40 Flange OD: 2.18"
• NW40 Tube OD: 1.5"
NW40 Series Equivalent Names:
• KF40, KF-40, NW-40 & QF40



6.00" OD UHV High Vacuum Flange Series x2
• 4" Tube OD
• 16-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter
• Rotatable Conflat Flanges

6" OD Conflat (600CFF) Equivalents
• CF100, CF600, DN100CF, NW100CF, 600CF
600xNW40-T 600x40-RWT 600x40-T


6.00" OD Conflat To NW40
Reducing Tee
(600xNW40-RWT)

600xNW40-RWT$428.00

Click to enlarge
Click to enlarge
All NW40 Hardware


6.00" OD Conflat Series Hardware


Click to enlarge
Click to enlarge
Conflat Tees


NW Series Tees


Click to enlarge
Click to enlarge
Non-Reducing Series


Reducing Tees Weld Bodies
