Reducing Tee
6.00" OD Conflat to 4.50" OD Conflat

600x450-RDT

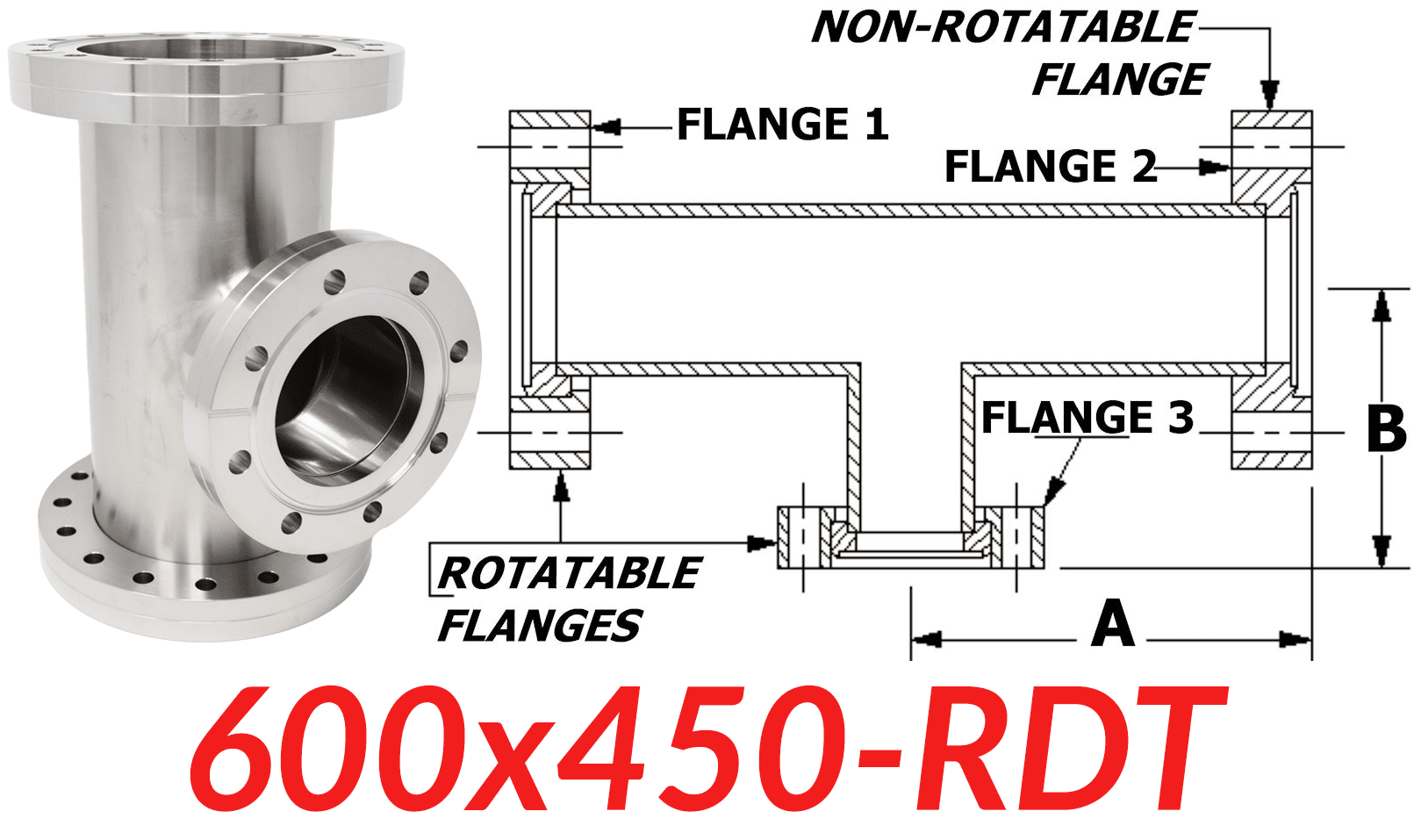

6.00" OD Conflat to 4.50" OD Conflat Tee
Flange to Flange Reducing TEE

Ultra-High Vacuum (UHV) Fitting
• A: 4.32"
• B: 4.13"
• 304 Stainless
• OD Polish

6.00" OD Conflat Flange (CF) Flange 1&2:
• 4.00" Tube OD
• 16-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

6" OD Conflat (600CFF) Equivalents
• CF100, CF600, DN100CF, NW100CF, 600CF


4-1/2" OD Conflat Flange (CF), Flange 3:
• 2.50" Tube OD
• 8-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

4.50" OD Conflat Flange (CFF) Equivalents
• 450CF, DN63CF, NW63CF, CF63, CF64 CF450
600x450-RDT Compare to: 600x450-T 3TR-400-250 P104858 400-3-250 404054 5000511 600X450-RDT T-0600-450


6.00" CF to 4.50" CF - Reducing Tee
(600x450-RDT)

600x450-RDTPrice: $633.00Sale: $534.00

Click to enlarge
Click to enlarge
4.50" OD Conflat Series Hardware


6.00" OD Conflat Series Hardware
