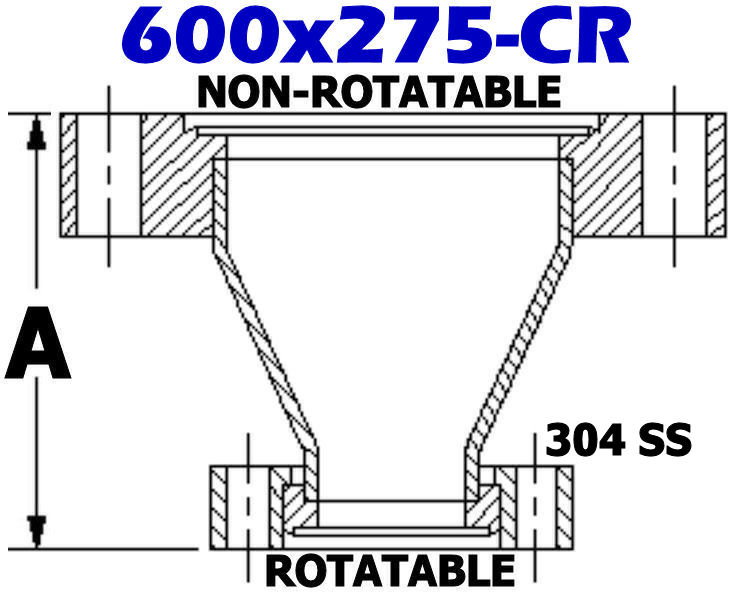

Click to enlarge6.00" CF to 2.75" CF
Conical Reducer
A: 4.26"
6 lbs.

600x275-CR
6.00" Conflat to 2.75" Conflat Conical Reducing Nipple

• 600x275 CFF (DN100CFxDN40CF)
• 304 Stainless
• OD Polish
• Flange to Flange UHV Vacuum Adapter
• CFxCF Conical Reducer

2-3/4" OD CF Conflat Flange (CF):
• Rotatable
• 1.50" Tube OD
• 6 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter

2.75" OD CF Conflat Flange (CFF) Equivalents
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF


6.00" OD Conflat Flange (CF):
• Non-Rotatable
• 4" Tube OD
• 16-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

6" OD Conflat (600CFF) Equivalents
• CF100, CF600, DN100CF, NW100CF, 600CF
600x275-CR Compare to: 2NRC-600-275 DN100CFxDN35CF DN100CF x DN40CF 600x275-CR-VE 275x600-CR-VE


6" OD CF to 2.75" CF
Conflat Conical Reducer
(600x275-CR)

600x275-CR$290.00
