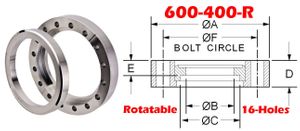

6.00" OD Conflat Flange <br> 4.00" OD Tube <br> (600-400-R)

6.00" OD Conflat Flange
Rotatable
16-Thru Holes (0.332 Diameter)
4" Tube OD

600-400-R
6.00" OD CF Conflat Flange
Rotatable, Through Holes
4" Bore Size
• Weight: 4 lbs
• A: 5.97"
• B: 3.81"
• C: 4.01"
• D: 0.84"
• E: 0.437"
• F: 5.128"

6.00" OD CF Conflat Flange
DN100CF to 4" Bored Blank
• 16 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter
• Rotatable
• 304 Stainless

6" OD Conflat (600CFF) Equivalents
CF100, CF600, DN100CF, NW100CF, 600CF Del Seal

High Vacuum and Ultra High Vacuum (UHV) Flange 600-400-R Compare to: F0600X400R 600-400R 100886005 100026 F600400R F06000400RC4 P104707 5000133 9088K23



6.00" OD Conflat Double Sided		6.00" OD Conflat Series Hardware



6.00" OD Conflat Non-Rotatable THRU Hole Series		6.00" OD Conflat Rotatable THRU Hole Series



6.00" OD Conflat Non-Rotatable TAPPED Hole Series		6.00" OD Conflat Rotatable TAPPED Hole Series

**6.00" OD Conflat Flange Accessories Below**
6.00" OD Conflat Flange - Bolt Kits
6.00" OD Conflat Flange - Copper Gaskets
6.00" OD Conflat Flange - Viton Gaskets
6.00" OD Conflat Flange – Plastic Caps
