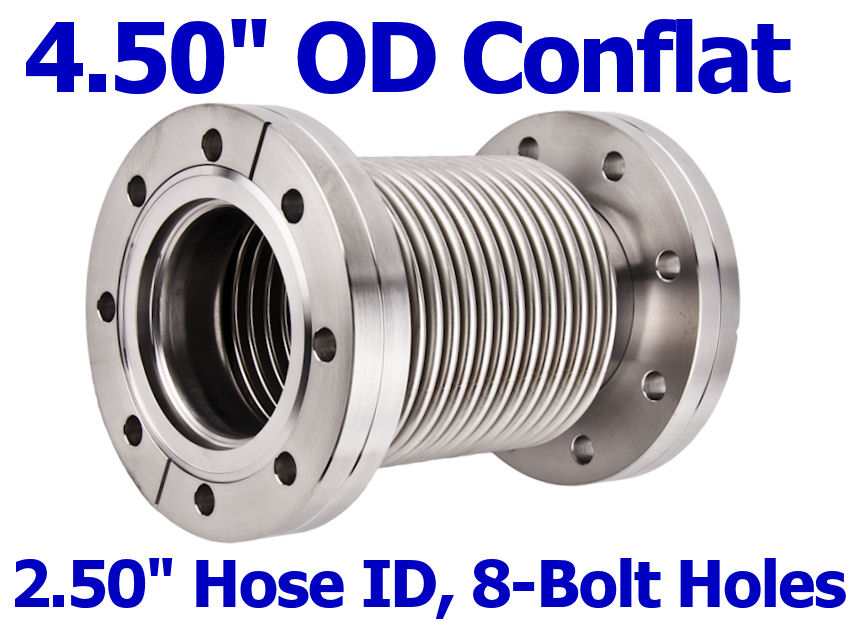

Click to enlarge4.50" OD Conflat Flexible Metal Hose
20" OAL
Thin Wall

450-MH20-VE
4.50" OD Conflat Flange (CF) Series
20" OAL CF Flexible Metal Hose (Bellows)
Vacuum Essential

• 0.008" Wall Thickness (Thin)
• 1 Rotatable Conflat Flange
• 304 Stainless Steel
• Hydraulically Formed Ultra-High Vacuum (UHV) Bellows
• Special Lengths Available

4-1/2" OD CF Conflat Flange (CF)
• Ø2.50" Hose ID
• 8 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

4.50" OD Conflat Flange (CFF) Equivalents
• 450CF, DN63CF, NW63CF, CF63, CF64 CF450
Compare to: 450-MH18, 450-MH20


4.50" Flexible Metal Hose 20" OAL
(450-MH20-VE)

450-MH20-VE$553.00

Click to enlarge
Click to enlarge
4.50" OD Conflat Series Hardware


All 4.50" CF Metal Hose



**This Vacuum Essential Includes**
• 4.50" OD Conflat Flexible Metal Hose (Bellows)
• 2-Bolt Kits (450-BK Series)
• 10-Copper Gaskets (450-CG Series)
