4.50" OD Conflat To ISO63 <br> Non-Reducing Tee <br> 450xISO63-NRT

NON-Reducing TEE

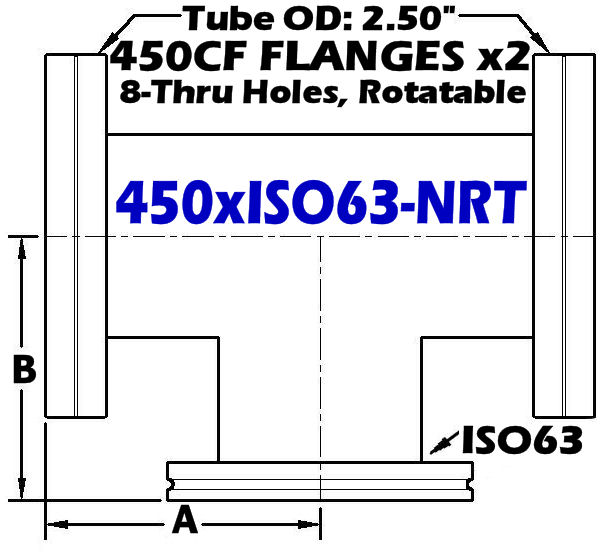

4.50" OD Conflat x2 To ISO63
A: 3.37"
B: 3.25"

450xISO63-NRT
(2) 4.50" OD CF x (1) ISO63 Non-Reducing Tee
Tees With The Same Size Tube OD: 2.50"
• All Conflat Flanges (CF) Are Rotatable
• 304 Stainless
• High Vacuum Adapters

4-1/2" OD Conflat Flange (CF):
• 2.50" Tube OD
• 8-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

4.50" OD Conflat Flange (CFF) Equivalents
• 450CF, DN63CF, NW63CF, CF63, CF64 CF450

ISO63 (ISO-K) Series
• High Vacuum Flange OD: Ø3.74"
• Tube OD: 2.50"
• ISO-K Claw Clamp Style



4.50" OD Conflat Series Hardware		ISO63 Series Hardware



ISOxConflat Adapters		Non-Reducing Series



Conflat Tees		ISO TEES (All)
