Reducing Tee
4.50" OD Conflat to 3.38" OD Conflat
OD Polish

450x338-RDT

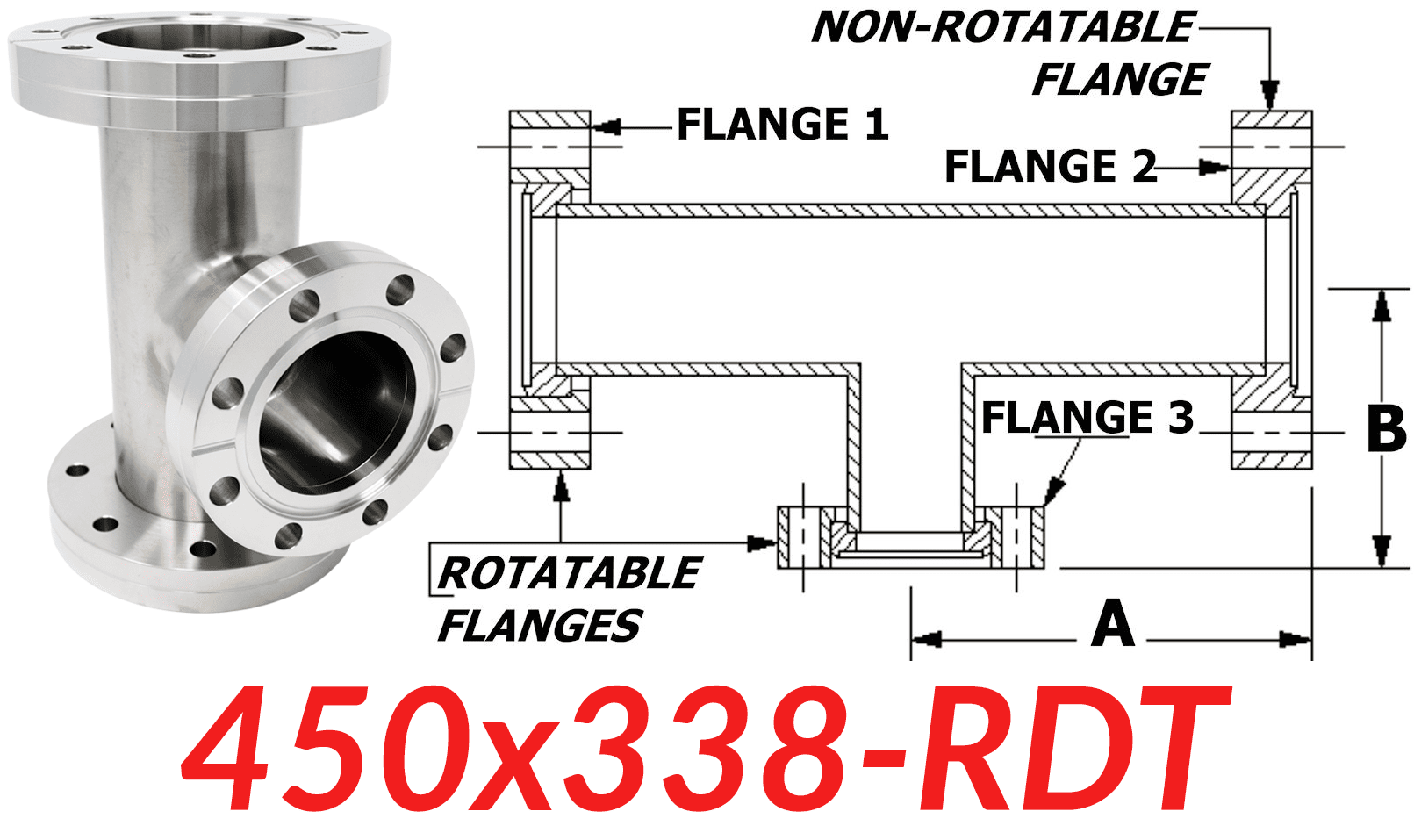

4.50" OD Conflat to 3.38" OD Conflat Tee
Flange to Flange Reducing TEE

Ultra-High Vacuum (UHV) Fitting
• A: 3.38"
• B: 3.48"
• 304 Stainless
• OD Polish

4-1/2" OD Conflat Flange (CF), Flange 1&2:
• 2.50" Tube OD
• 8-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

4.50" OD Conflat Flange (CFF) Equivalents
• 450CF, DN63CF, NW63CF, CF63, CF64 CF450


3.38" OD Conflat Flange (CF) Flange 3:
• 2.00" Tube OD
• 8 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

3-3/8" OD Conflat Flange (CF) Equivalents:
• 338CF, CF338, DN50CF, NW50CF, 3.375" CFF
450x338-RDT Compare to: 450x338-T 3TR-250-200 P104854 250-3-200 404049 5000506 450X338-RDT T-0450-337


4.50" CF to 3.38" CF - Reducing Tee
(450x338-RDT)

450x338-RDTPrice: $340.00Sale: $282.00
