4.50" OD Conflat to 2.12" OD Conflat
Zero Length Reducer

450x212-100-0-T1
4.50" OD Conflat to 2.12" OD Conflat
212x450 UHV Flange To Flange Adapter
Zero Length Reducer

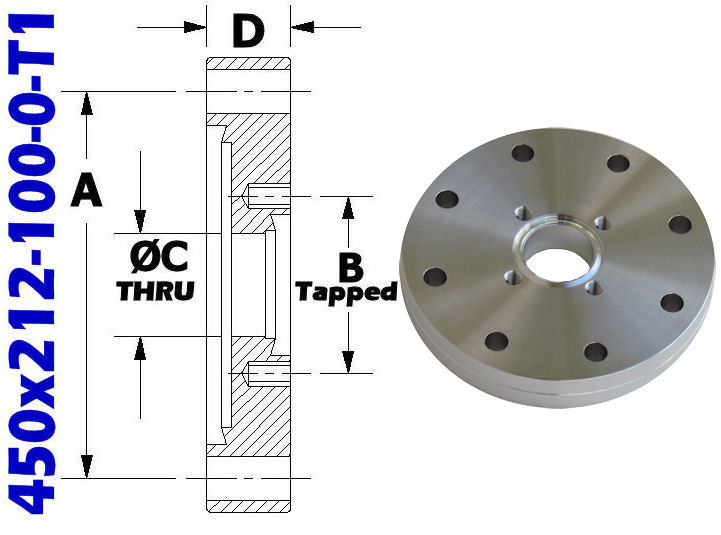

• Weight: 3.25 lbs
• A: 4.50" OD Conflat
• B: 2.12" OD Tapped Conflat
• C: 1.00"
• D: 0.68"
DN63CFxDN25CF (DN25CFxDN63CF)

2.12" OD Conflat Flange (DN25CF):
• 4 Tapped Holes
• 1/4-28 Thread
Uses 212-BT Tapped Bolt Kit

2.125" OD Conflat Flange (CFF) Equivalents:
• CF212, DN25CF, NW25CF, 212CF, 2-1/8" CF



4-1/2" OD Conflat Flange (CF):
• 8-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

4.50" OD Conflat Flange (CFF) Equivalents
• 450CF, DN63CF, NW63CF, CF63, CF64 CF450
450x212-100-0-T1 Compare to: RF450X212 450-212-100Z 450X218 150007 5000293 P104809 Del Seal


4.50" OD CF to 2.12" OD CF
Zero Length Reducer
(450x212-100-0-T1)

450x212-100-0-T1Price: $222.53Price Drop: $88.00

Click to enlarge
Click to enlarge
2.12" OD Conflat Series Hardware


4.50" OD Conflat Series Hardware



2.12" OD Conflat:
• 4-TAPPED Holes

4.50" OD Conflat:
• 8-Clearance Holes

***2.12" OD Conflat Flange Accessories Below***
2.12" OD Conflat - Copper Gaskets
2.12" OD Conflat - Viton Gaskets
2.12" OD Conflat - Tapped Bolt Kits

***4.50" OD Conflat Flange Accessories Below***
4.50" OD Conflat - Copper Gaskets
4.50" OD Conflat - Viton Gaskets
4.50" OD Conflat - Clearance Hole Bolt Kits
