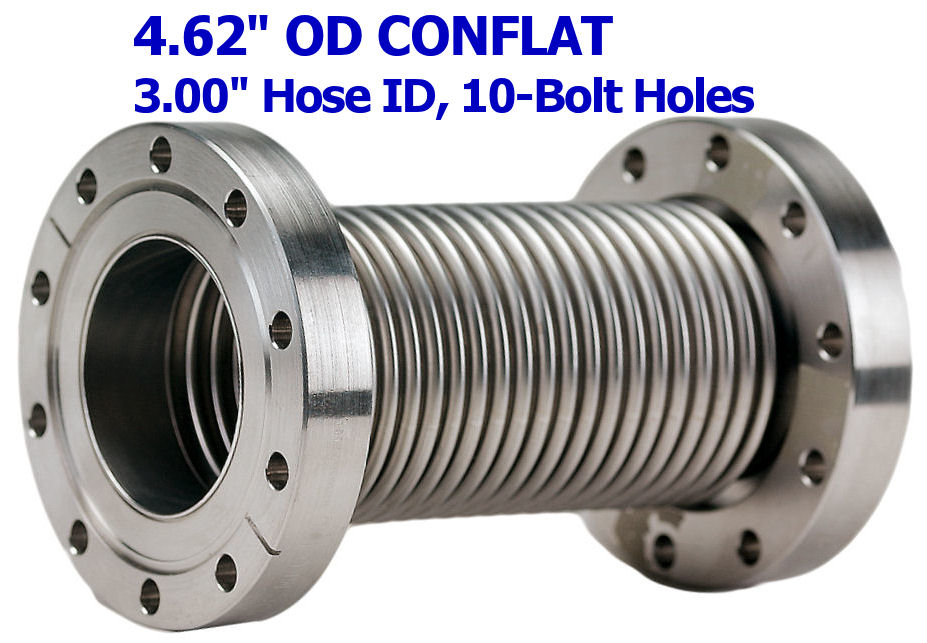

4.62" OD Conflat Flange Flexible Metal Hose

4.62" OD Conflat Flange (CF) Series
4-5/8" OD Flexible Metal Hose (Bellows)
• 1 Rotatable Conflat Flange
• Roughing Components
• Vacuum Roughing Hose
• 304 Stainless Steel
• Flexible Coupling
• Hydraulically Formed Ultra-High Vacuum (UHV) Bellows
• Special Lengths Available

4.62" OD CF Conflat Flange
• Ø3" Hose ID
• 10 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

4.625" OD Conflat Flange (CFF) Equivalents:
• CF462, DN75CF, NW75CF, 462CF


4.62" Flexible Metal Hose 7.00" OAL (462-MH7) 0.008" Wall Thickness Price: $500.00 Price Drop: $347.00		4.62" Flexible Metal Hose 7.00" OAL (462-MH7-VE) 0.008" Wall Thickness Vacuum Essential $411.00


4.62" Flexible Metal Hose 12" OAL (462-MH12-M) 0.016" Wall Thickness $498.00		4.62" Flexible Metal Hose 12" OAL (462-MH12M-VE) 0.016" Wall Thickness Vacuum Essential $561.00


4.62" Flexible Metal Hose 18" OAL (462-MH18-M) 0.016" Wall Thickness $533.00		4.62" Flexible Metal Hose 18" OAL (462-MH18M-VE) 0.016" Wall Thickness Vacuum Essential $596.00


4.62" Flexible Metal Hose 24" OAL (462-MH24-M) 0.016" Wall Thickness $568.00		4.62" Flexible Metal Hose 24" OAL (462-MH24M-VE) 0.016" Wall Thickness Vacuum Essential $631.00

* Vacuum Essentials Include *
• 4.62" OD Conflat Flexible Metal Hose
• 2-Bolt Kits (462-BK Series)
• 10-Copper Gaskets (462-CG Series)
