3.38" OD Conflat Manual Inline Valve
2.00" Tube OD
Copper Bonnet
Vacuum Essential

MIVC-CF338
3-3/8" OD Conflat Inline Vacuum Valve
Manual Bellows Sealed SS Inline Valve

• High & Ultra High (UHV) Vacuum Valve
• Offset In-Line Poppet Valve
• Copper Bonnet
• Bakeable to 150°C (200°C intermittently)

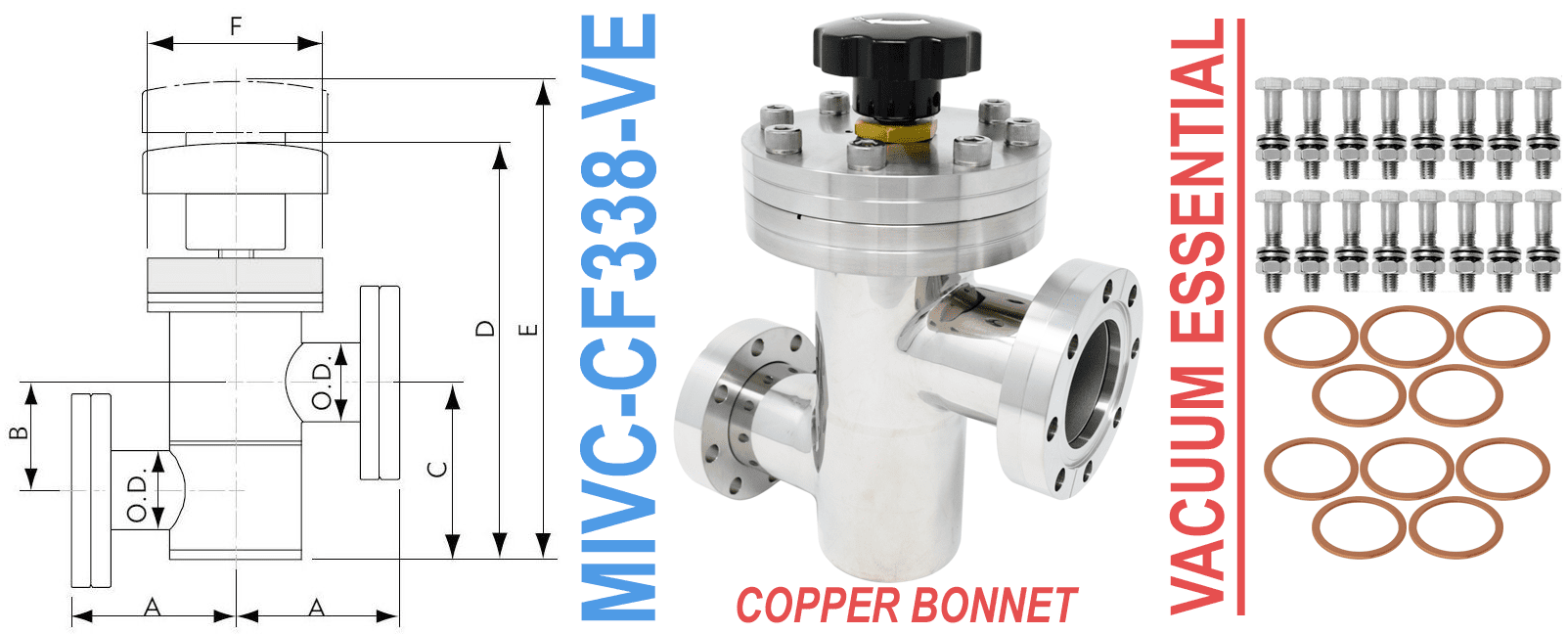

• A: 3.47"
• B: 2.62"
• C: 4.12"
• D: 8.86"
• E: 10.63"
• F: 4.47"
Vacuum Essential

3.38" OD Conflat Flange (CF):
• Rotatable Flanges
• 2.00" Tube OD
• 8 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

3-3/8" OD Conflat Flange (CF) Equivalents:
• 338CF, CF338, DN50CF, NW50CF, 3.375" CFF



3.38" OD Conflat Manual Inline Valve
(MIVC-CF338-VE)

MIVC-CF338-VE$714.00

Click to enlarge
Click to enlarge
3.38" OD Conflat Series Hardware


Conflat Valves (All)



**This Vacuum Essential Includes**
Manual Inline Valve, 3.38" Conflat: MIVC-CF338
• 2-Bolt Kits (338-BK Series)
• 10-Copper Gaskets (338-CG Series)
