Click to enlarge2.75" OD Conflat Flange
Non-Rotatable, 6-Tapped Holes
0.75" OD Tube

275-075-T
2.75" OD CF Conflat Flange
Non Rotatable, Tapped Hole
3/4" Bore Size

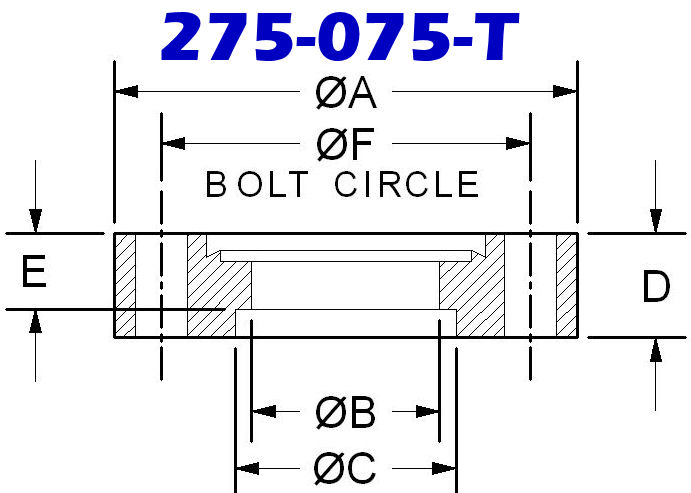

• A: 2.72"
• B: 0.625"
• C: 0.76"
• D: 0.50"
• E: 0.209"
• F: 2.312"

2.75" OD CF Conflat Flange
• 6 Tapped Holes (1/4-28 Thread)
• 3/4" Bored Blank

• DN40CF (DN35CF) Bored Blank
• Non-Rotatable
• 304 Stainless Steel

2-3/4" OD CF Conflat Flange, Same As:
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF

High Vacuum & Ultra High Vacuum (UHV) Fittings
2.75" OD (DN35CF, DN40CF) Non-Rotatable CF Flanges

275-075-T Compare to: F0275X075NT 100883010 275-075NT 5000067 P104639 130011 F275075T F02750075NT4 CF275T-075


2.75" OD Conflat
0.75" Tube OD
(275-075-T)

275-075-TPrice: $57.00Sale: $23.00
