10-2 cc/sec (Helium) Range Includes NIST Traceable Cert Calibrated by our A2LA Accredited Calibration Lab

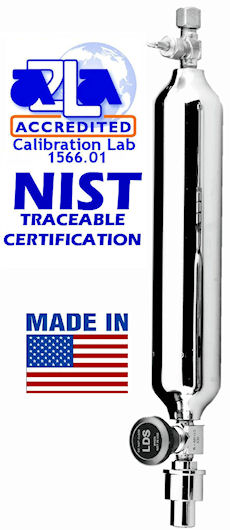

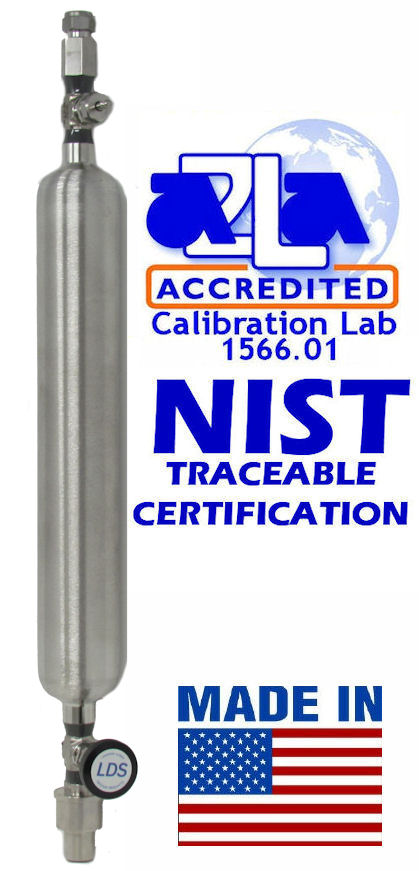

Capillary style helium calibrated gas leak with standard 1-1/8" port. Leak rate will be in the x10-2 cc/sec range. All metal construction, NIST certification and shutoff valve are also included.


10-2 cc/second Helium Leak Rate Range
SC-2 Calibrated Gas Leak
0506-1586-0$1,593.00

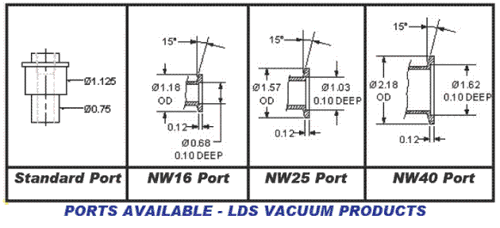

Port:


Specific Leak Rate

Specific-Leak-Rate$100.00
1.33" OD Welded Conflat Flange Port

-133CF$300.00
2.75" OD Welded Conflat Flange Port

-275CF$300.00
