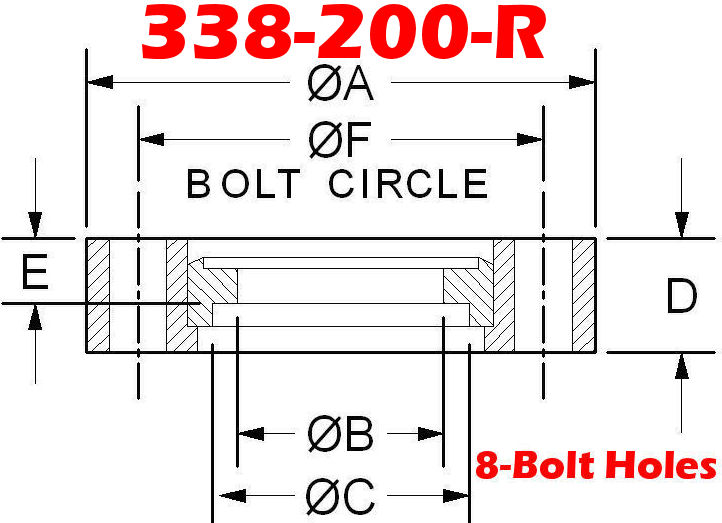

Click to enlarge3.38" OD Conflat Flange
2" Tube OD

338-200-R
• A: 3.37"
• B: 1.87"
• C: 2.01"
• D: 0.68" (Thickness)
• E: 0.225"
• F: 2.85"
338-200-R Compare to: F0337X200R 100884008 F338200R 100017 338-200R 5000096 CF338R-200 P104664 F03380200RC4

338-200-R
3.38" OD CF Conflat Flange
Rotatable, Thru Holes
2" Bore Size

3.38" OD CF Conflat Flange
2" Bored Blank (Weld Flange)

• 8 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter
• Rotatable Flange
• 304 Stainless Steel

3-3/8" OD CFF Conflat Flange, Same As:
338CF, CF338, DN50CF, NW50CF, 3-3/8" CFF

High Vacuum and Ultra High Vacuum (UHV) Flanges


3.38" OD Conflat Flange
2.00" OD Tube
(338-200-R)

338-200-RPrice: $87.30Sale: $55.00

Click to enlarge
Click to enlarge
3.38" OD Conflat Series Hardware


3.38" OD Conflat
Double Sided



Click to enlarge
Click to enlarge
3.38" OD Conflat
Non-Rotatable
THRU Hole Series



3.38" OD Conflat
Rotatable
THRU Hole Series



Click to enlarge
Click to enlarge
3.38" OD Conflat
Non-Rotatable
TAPPED Hole Series



3.38" OD Conflat
Rotatable
TAPPED Hole Series




**3.38" OD Conflat Flange Accessories Below**
3.38" OD Conflat Flange - Bolt Kits
3.38" OD Conflat Flange - Copper Gaskets
3.38" OD Conflat Flange - Viton Gaskets
3.38" OD Conflat Flange – Plastic Caps
