2.75" OD Conflat Manual Inline Valve
1.50" Tube OD
Copper Bonnet
Vacuum Essential

MIVC-CF275-VE
2-3/4" OD Conflat Inline Vacuum Valve
Manual Bellows Sealed SS Inline Valve

• High & Ultra High (UHV) Vacuum Valve
• Offset In-Line Poppet Valve
• Copper Bonnet
• Bakeable to 150°C (200°C intermittently)

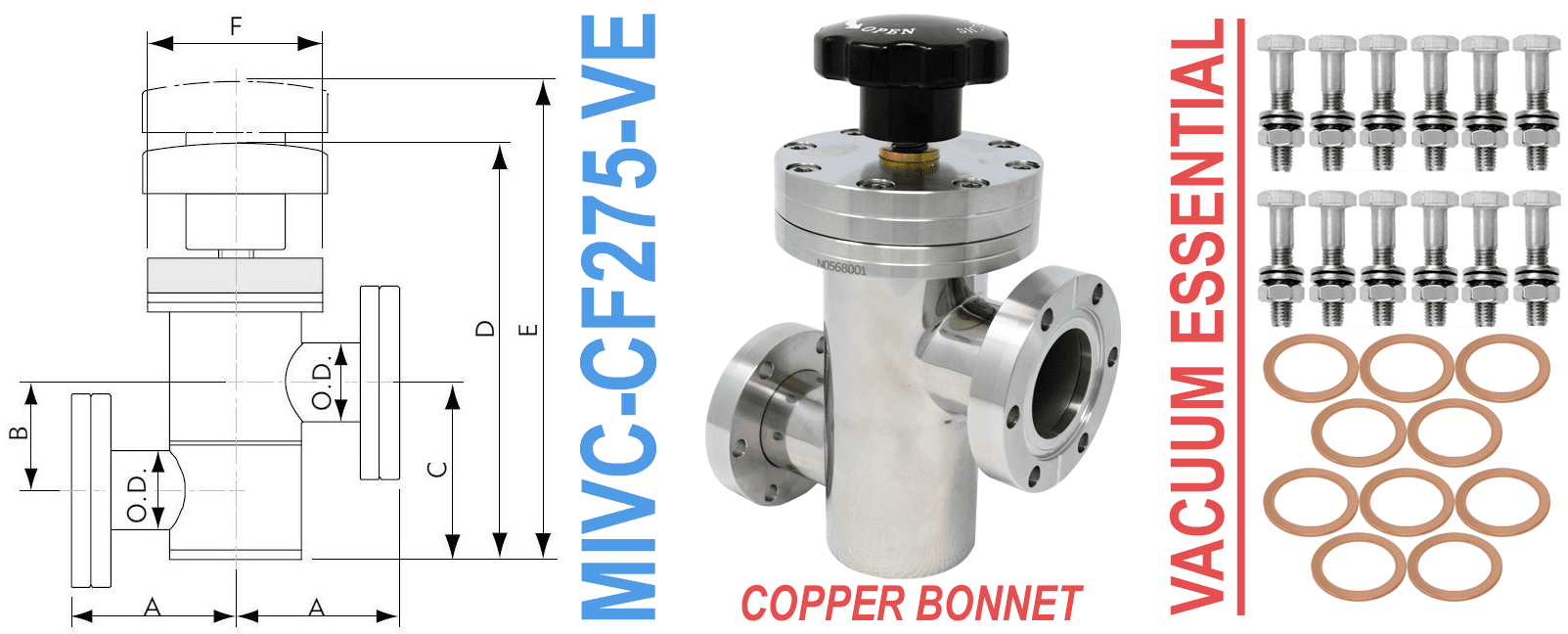

• A: 2.46"
• B: 1.88"
• C: 3.12"
• D: 7.35"
• E: 8.57"
• F: 3.37"
Vacuum Essential

2-3/4" OD CF Conflat Flange:
• Rotatable Flanges
• 1.50" Tube OD
• 6 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter

2.75" OD CF Conflat Flange (CFF) Equivalents
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF


2.75" OD Conflat Manual Inline Valve
(MIVC-CF275-VE)

MIVC-CF275-VE$582.00

Click to enlarge
Click to enlarge
2.75" OD Conflat Series Hardware


Conflat Valves (All)



**This Vacuum Essential Includes**
Manual Inline Valve, 2.75" Conflat: MIVC-CF275
• 2-Bolt Kits (275-BK Series)
• 10-Copper Gaskets (275-CG Series)
