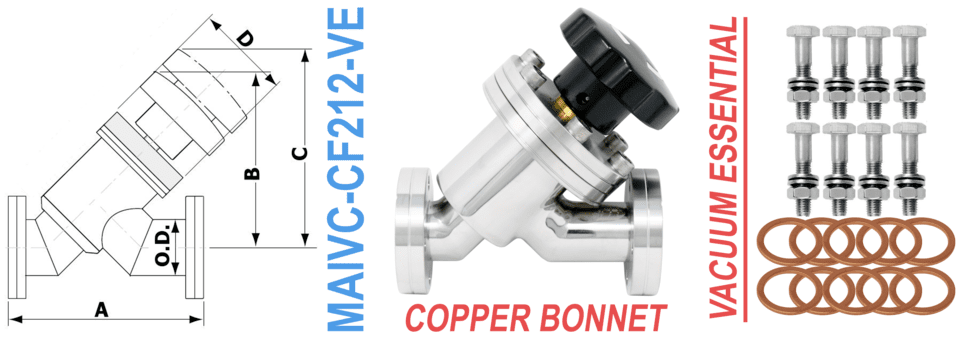

2.12" OD Conflat Manual Angle Inline Valve
1.00" Tube OD
Copper Bonnet
Vacuum Essential

2-1/8" OD Conflat Angle-Inline Vacuum Valve
Manual Bellows Sealed SS Inline Valve
Copper Bonnet

• High & Ultra High (UHV) Vacuum Valve
• Bakeable to 150°C (200°C intermittently)
• Angle In-Line Poppet Valve
• A: 4.24"
• B: 3.92"
• C: 4.44"
• D: 2.75"
Vacuum Essential

2.125" OD Conflat Flange (CF):
• Rotatable Flanges
• 1.00" Tube OD
• 4 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter

2.125" OD Conflat Flange (CF) Equivalents:
• CF212, DN25CF, NW25CF, 212CF, 2-1/8" CF

2.12" OD Conflat Manual Angle Inline Valve


Click to enlarge
Click to enlarge
2.12" OD Conflat Series Hardware

Conflat Valves (All)

**This Vacuum Essential Includes**
Manual Angle Inline Valve, 2.12" Conflat: MAIVC-CF212
• 2-Bolt Kits (212-BK Series)
• 10-Copper Gaskets (212-CG Series)
