Click to enlarge2.12" OD Conflat Flexible Metal Hose
10" OAL

212-MH10M-VE

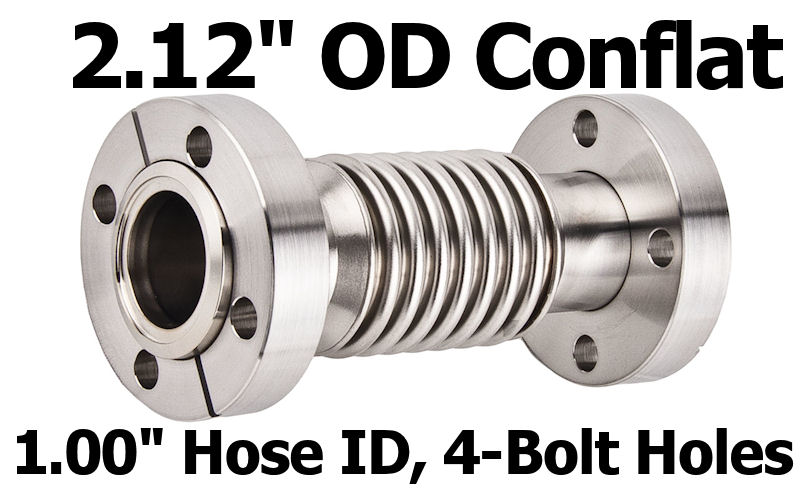

2.12" OD Conflat Flexible Metal Hose (Bellows)
10" OAL
Vacuum Essential

• Medium Wall: 0.008"
• 304 Stainless Steel
• Flexible Coupling (Nipple)
• Hydraulically (Hydro) Formed Stainless Hose
• Ultra High Vacuum (UHV) Series

2.12" OD CF Conflat Flange
• 1" Nominal Hose ID
• 1 Rotatable Conflat Flange
• 4 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter

2.125" OD Conflat Flange (CF) Equivalents:
• CF212, DN25CF, NW25CF, 212CF, 2-1/8" CF

Image Shown For Reference Only
212-MH10-M 212-MH10M 212-MH10T 212-MH10


2.12" Flexible Metal Hose 10" OAL
(212-MH10M-VE)

212-MH10M-VE$245.00

Click to enlarge
Click to enlarge
2.12" OD Conflat Series Hardware


All 2.12" CF Metal Hose



**This Vacuum Essential Includes**
• 2.12" OD Flexible Metal Hose (Bellows)
• 2-Bolt Kits (212-BK Series)
• 10-Copper Gaskets (212-CG Series)

Contact LDS Vacuum with any questions:
Phone (407)862-4643 via Fax (407)862-8723 or
info@ldsvacuum.com

LDS Vacuum Products is a 100% woman owned company and
certified Woman Owned Small Business (WOSB)
