2.12" OD Conflat Manual Inline Valve
1.00" Tube OD
Copper Bonnet

MIVC-CF212
2-1/8" OD Conflat Inline Vacuum Valve
Manual Bellows Sealed SS Inline Valve

• High & Ultra High (UHV) Vacuum Valve
• Offset In-Line Poppet Valve
• Copper Bonnet
• Bakeable to 150°C (200°C intermittently)

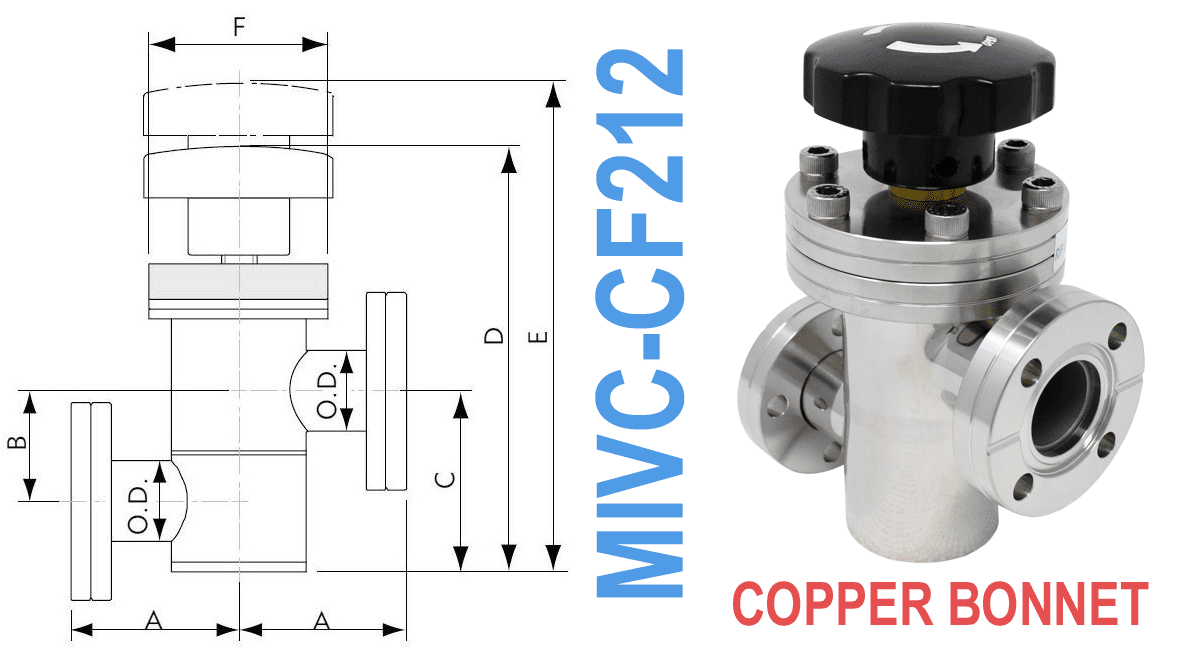

• A: 2.05"
• B: 1.37"
• C: 2.25"
• D: 5.33"
• E: 6.11"
• F: 2.75"
Former PN: MIVC-1002-CF

2.125" OD Conflat Flange (CF):
• Rotatable Flanges
• 1.00" Tube OD
• 4 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter

2.125" OD Conflat Flange (CF) Equivalents:
• CF212, DN25CF, NW25CF, 212CF, 2-1/8" CF
Compare to: SL0100MCCF IV-100M 322011 CILV-1002-CF MIVC-CF212-VE


2.12" OD Conflat Manual Inline Valve
(MIVC-CF212)

MIVC-CF212Price: $539.70Sale: $481.00

Click to enlarge
Click to enlarge
2.12" OD Conflat Series Hardware


Conflat Valves (All)
