Click to enlarge

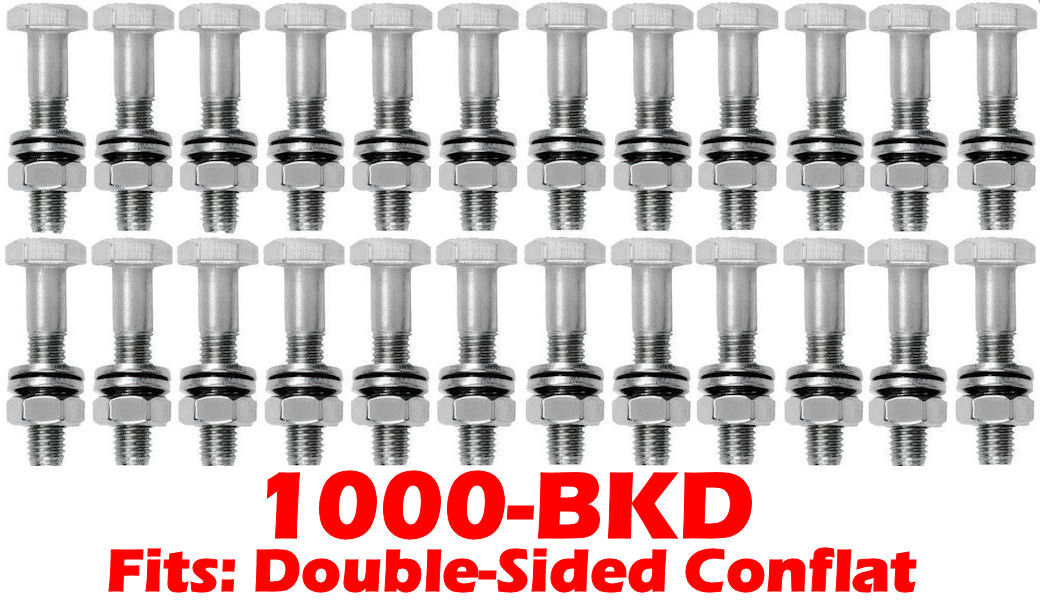

24-Bolts, Nut & Washer Kit
Fits:
10" OD DOUBLE-SIDED (DS) Conflat Flanges

1000-BKD
Fits: 10" Double Sided CF Conflat Flanges

• 24 Bolt, Nut and Washer Kit
• Del Seal Conflat Flange (CF) Equivalent
• 18-8 Stainless Bolts
• DN200CF (10") Double Faced Bolt Kit
• Ultra-High Vacuum (UHV) Hardware

1000-BKD Series Bolt Kit Fits:
10.00" OD Double Sided CF Conflat Flanges

Maximum Torque for Vacuum Tight Seals

3.38" -16.50" OD

26 ft/lbs.

Over-torqueing can result in broken bolts




Bolt, Nut & Washer Kit
Fits: 10" OD Conflat
Double Sided Flanges
(1000-BKD)

1000-BKD$43.00

Click to enlarge
Click to enlarge
10" OD Conflat
Double Sided



10" OD Conflat Series Hardware
