D16B TriVac Pump <br> 11.3 CFM

LEY-11266

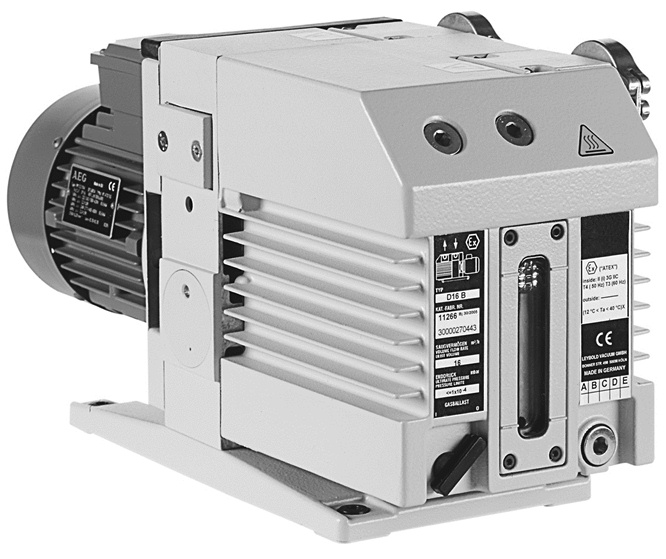

D16B TriVac Mechanical Pump
11.6 CFM (Actual Pumping Speed)
• 3-Phase 208-230/460 Volt 50/60Hz
• NW25 (KF25) Inlet Exhaust Flange
• New Oerlikon Leybold Vacuum Pump
• Rotary Vane Pump
• 78 lbs.

Former PN: LEY-91266-2
Sorry, Free Shipping Is NOT Available On This Item
91266-2 11266

All NW25 Hardware

Ultimate Partial Pressure:
• With Gas Ballast Closed: <1x10^-4 Torr
• With Gas Ballast Open: <4x10^-3

• Water Vapor Tolerance 19 Torr
• Noise level at 3 feet with gas ballast closed 52 dB(A)
• Noise level at 3 feet with gas ballast open 54 dB(A)
• Motor 3/4 hp
• Pump Rotational Speed 1750 RPM
• Minimum Oil Capacity 0.5 qt
• Inlet Exhaust Flange NW25
• Weight 78 lbs.

Free Shipping Does NOT Apply To Vacuum Pumps
Contact LDS Vacuum with any questions:
Phone (407)862-4643 via Fax (407)862-8723 or
