2.75" OD Conflat <br> 1.00" OD Tube <br> (275-100-R)

2.75" OD Conflat Flange
Rotatable
6 Thru Holes - 0.265 Diameter
1.00" Tube OD

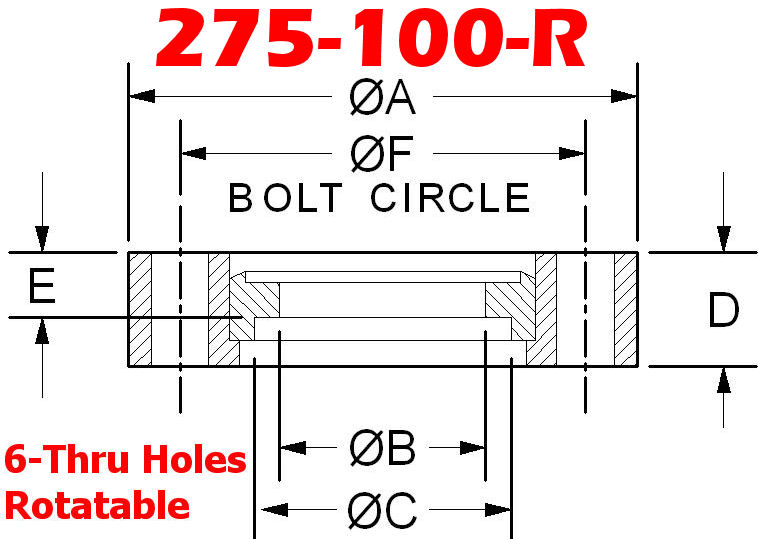

275-100-R
2.75" OD CF Conflat Flange
Rotatable, Thru Holes
1" Bore Size
• A: 2.72"
• B: 0.875"
• C: 1.01"
• D: 0.50"
• E: 0.209"
• F: 2.312"

2.75" OD CF Conflat Flange
1" Bored Blank
• 6 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter
• Rotatable Flange
• 304 Stainless Steel

2-3/4" OD CFF Conflat Flange, Same As:
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF

High Vacuum and Ultra High Vacuum (UHV) Flanges
275-100-R Compare to: F0275X100R 100883018 275-100R 5000076 100012 F275100R CF275R-100 P1011265
