Click to enlarge

2.12" OD Conflat Flange
Rotatable
4-Thru Holes (0.265 Diameter)
1" Tube OD

212-100-R Compare to: F218100R 100007 F0212X100R P104703 100882014 212-100R 5000911 212-100-R-OS

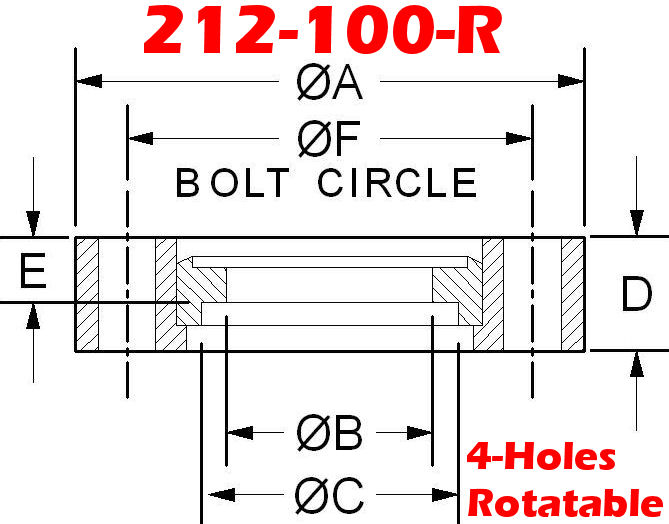

212-100-R
2.12" OD Bored Blank CF Conflat Flange
1" Bore Size

• A: 2.12"
• B: 0.94"
• C: 1.02"
• D: 0.47"
• E: 0.17"
• F: 1.62"

2.12" OD Conflat Flange (DN25CF):
• 1" Tube OD
• 4 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter
• Rotatable
• 304 Stainless

2.125" OD Conflat Flange (CFF) Equivalents:
• CF212, DN25CF, NW25CF, 212CF, 2-1/8" CF

High Vacuum and Ultra High Vacuum (UHV) Flanges


2.12" OD Conflat Flange 1.00" OD Tube
(212-100-R)

212-100-RPrice: $49.00Sale: $15.00

Click to enlarge
Click to enlarge
2.12" OD Conflat Series Hardware


2.12" OD Conflat
Double Sided



Click to enlarge
Click to enlarge
2.12" OD Conflat
Rotatable
THRU Hole Series



2.12" OD Conflat
Non-Rotatable
THRU Hole Series



Click to enlarge
Click to enlarge
2.12" OD Conflat
Rotatable
TAPPED Hole Series



2.12" OD Conflat
Non-Rotatable
TAPPED Hole Series




**2.12" OD Conflat Flange Accessories Below**
2.12" OD Conflat - Bolt Kits
2.12" OD Conflat - Copper Gaskets
2.12" OD Conflat - Viton Gaskets
2.12" OD Conflat Plastic Caps
