Click to enlarge16.50" OD Conflat Flange
Rotatable
36-Tapped Holes, 3/8-24 Thread
14.00" OD Tube

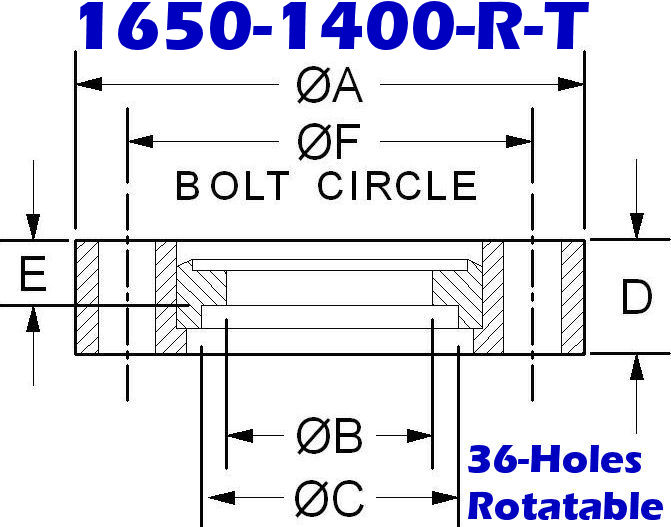

1650-1400-R-T
16-1/2" OD CF Conflat Flange to 14" Tube OD
Rotatable, 36-Tapped Holes
14" Tube OD (Bored Blank)
Contact LDS for Pricing

• A: 16.50"
• B: 13.75"
• C: 14.02"
• D: 1.12"
• E: 0.50"
• F: 15.31"
• 19 lbs.

16.50" OD CF Conflat Flange
• 36 Tapped Holes
• 3/-24 Bolt Hole Thread

• Rotatable
• 304 Stainless

16-1/2" OD Conflat, Same As:
CF1650, DN350CF, CF350, 1650CF

High Vacuum and Ultra High Vacuum (UHV) Flange
F1650X1400RT 5000207 1650-1400-RT


16.50" OD Conflat
14" OD Tube
1650-1400-R-T

1650-1400-R-T

Click to enlarge
Click to enlarge
Shop all 16.50" OD Conflat Hardware


16.50" OD Conflat Flange

Rotatable
All Types

Click to enlarge
16.50" OD Conflat Flange

Non-Rotatable
All Types


**16.50" OD Conflat Flange Accessories Below**
16.50" OD Copper Gaskets
16.50" OD Conflat Flange Viton Gaskets
16.50" OD Conflat – TAPPED Flange Bolt Kit
