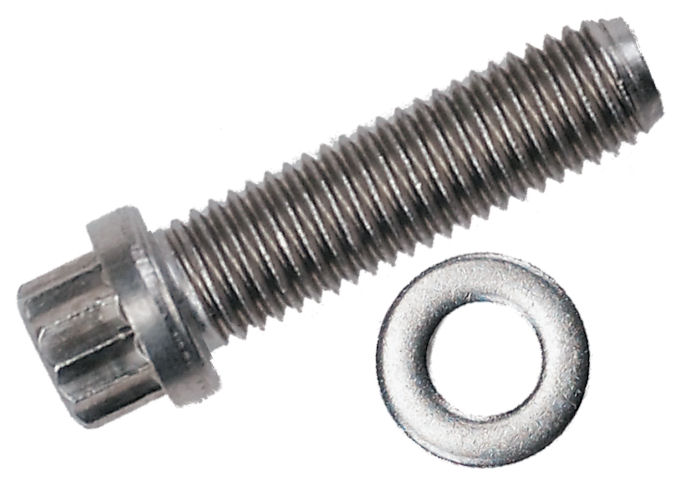

Click to enlarge12-Point Bolt & Washer Kits
Fits Conflat Flanges With TAPPED Holes

12 Point Conflat Bolt and Washer Kits
• BT-12 (BT12) Bolt Kit Series
• CF Conflat Flange UHV Hardware
• 18-8 Stainless 12-PT Bolts
• Twelve-Point (Dodecagon Style) Bolts
• CFF Conflat Flange Tapped Hole Bolt Kit

Fits ONLY:
✓ TAPPED Bolt Hole CF Conflat Flanges


Maximum Torque for Vacuum Tight Seals

1.33" OD

5 ft/lbs.

2.12" -2.75" OD

16 ft/lbs.

3.38" -16.50" OD

26 ft/lbs.

Over-torqueing can result in broken bolts





12-Point Bolt & Washer <br> Kit, Fits: 2.12" Conflat <br> Tapped Hole <br> (212-BT-12)
12-Point Bolt & Washer <br> Kit, Fits: 2.75" Conflat <br> Tapped Hole <br> (275-BT-12)
12-Point Bolt & Washer
Kit, Fits: 2.12" Conflat
Tapped Hole
(212-BT-12)


$8.00
12-Point Bolt & Washer
Kit, Fits: 2.75" Conflat
Tapped Hole
(275-BT-12)


$12.00
12-Point Bolt & Washer <br> Kit, Fits: 3.38" Conflat <br> Tapped Hole <br> (338-BT-12)
12-Point Bolt & Washer <br> Kit, Fits: 4.50" Conflat <br> Tapped Hole <br> (450-BT-12)
12-Point Bolt & Washer
Kit, Fits: 3.38" Conflat
Tapped Hole
(338-BT-12)


$21.00
12-Point Bolt & Washer
Kit, Fits: 4.50" Conflat
Tapped Hole
(450-BT-12)


$21.00
12-Point Bolt & Washer <br> Kit, Fits: 4.62" Conflat <br> Tapped Hole <br> (462-BT-12)
12-Point Bolt & Washer <br> Kit, Fits: 6.00" Conflat <br> Tapped Hole <br> (600-BT-12)
12-Point Bolt & Washer
Kit, Fits: 4.62" Conflat
Tapped Hole
(462-BT-12)


$26.00
12-Point Bolt & Washer
Kit, Fits: 6.00" Conflat
Tapped Hole
(600-BT-12)


$41.00
12-Point Bolt & Washer <br> Kit, Fits: 6.75" Conflat <br> Tapped Hole <br> (675-BT-12)
12-Point Bolt & Washer <br> Kit, Fits: 8.00" Conflat <br> Tapped Hole <br> (800-BT-12)
12-Point Bolt & Washer
Kit, Fits: 6.75" Conflat
Tapped Hole
(675-BT-12)


$46.00
12-Point Bolt & Washer
Kit, Fits: 8.00" Conflat
Tapped Hole
(800-BT-12)


$70.00
12-Point Bolt & Washer <br> Kit, Fits: 10" Conflat <br> Tapped Hole <br> (1000-BT-12)
12-Point Bolt & Washer
Kit, Fits: 10" Conflat
Tapped Hole
(1000-BT-12)


$88.00
