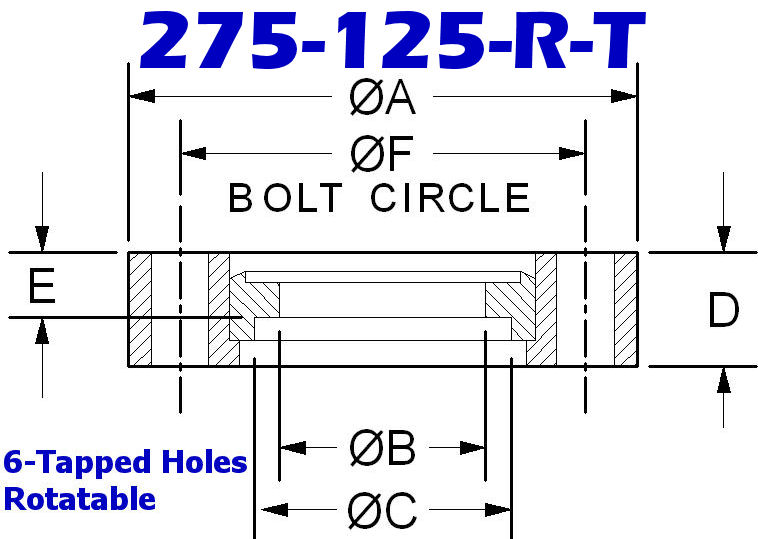

Click to enlarge2.75" OD Conflat Flange
Rotatable, 6-Tapped Holes
1.25" Tube OD

275-125-R-T
2.75" OD CF Conflat Flange
Rotatable, Tapped Holes
1-1/4" Bore Size

• A: 2.72"
• B: 1.185"
• C: 1.26"
• D: 0.50"
• E: 0.209"
• F: 2.312"

2.75" OD CF Conflat Flange
• 6 Tapped Holes (1/4-28 Thread)
• 1 1/4" Bored Blank

• DN40CF (DN35CF) Bored Blank
• Rotatable
• 304 Stainless Steel

2-3/4" OD CF Conflat Flange, Same As:
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF

High Vacuum and Ultra High Vacuum (UHV) Flanges
275-125-R-T Compare to: 275-125-RT F0275X125RT 275-125RT 100883026 5000085 120013 F275125RT


2.75" OD Conflat
1.25" OD Tube
(275-125-R-T)

275-125-R-TPrice: $111.61Sale: $33.00
