Click to enlarge12" OD Conflat Flange
Non-Rotatable
10.00" Tube OD

1200-1000

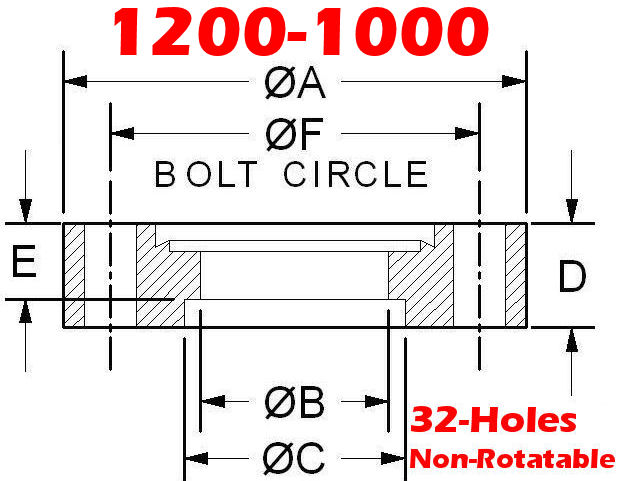

12" OD CF to 10" Tube OD Bored Blank
Non-Rotatable Conflat Flange

• Weight: 13 lbs
• A: 11.97"
• B: 9.75"
• C: 10.03"
D: 1.12"
• E: 0.50"
• F: 11.18"

12.00" OD Conflat Flange (CFF):
DN250CF to 10" Bored Blank

• 10" Tube OD
• Non-Rotatable
• 32-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter
• 304 Stainless Steel

12" OD UHV Conflat Flange Equivalents:
CF1200, CF250, DN250CF, NW250CF, 1200CF

High Vacuum and Ultra High Vacuum (UHV) Flanges
1200-1000 Compare to: 1200-100N F1200X100N CF-BF-1200x1000 F12001000 110059 5000165 P104680


12.00" OD Conflat
10" OD Tube
(1200-1000)

1200-1000Price: $907.50Sale: $589.00

Click to enlarge
Click to enlarge
12" OD Conflat
Non-Rotatable
THRU Hole Series



12" OD Conflat
Rotatable
THRU Hole Series



Click to enlarge
Click to enlarge
12" OD Conflat
Non-Rotatable
TAPPED Hole Series



12" OD Conflat
Rotatable
TAPPED Hole Series



Click to enlarge
Shop all 12" OD Conflat Hardware



**12.00" OD Conflat Flange Accessories Below**
12" OD Copper Gaskets
12" OD Conflat Flange Viton Gaskets
12" OD Conflat - Clearance Hole (THRU) Bolt Kit
