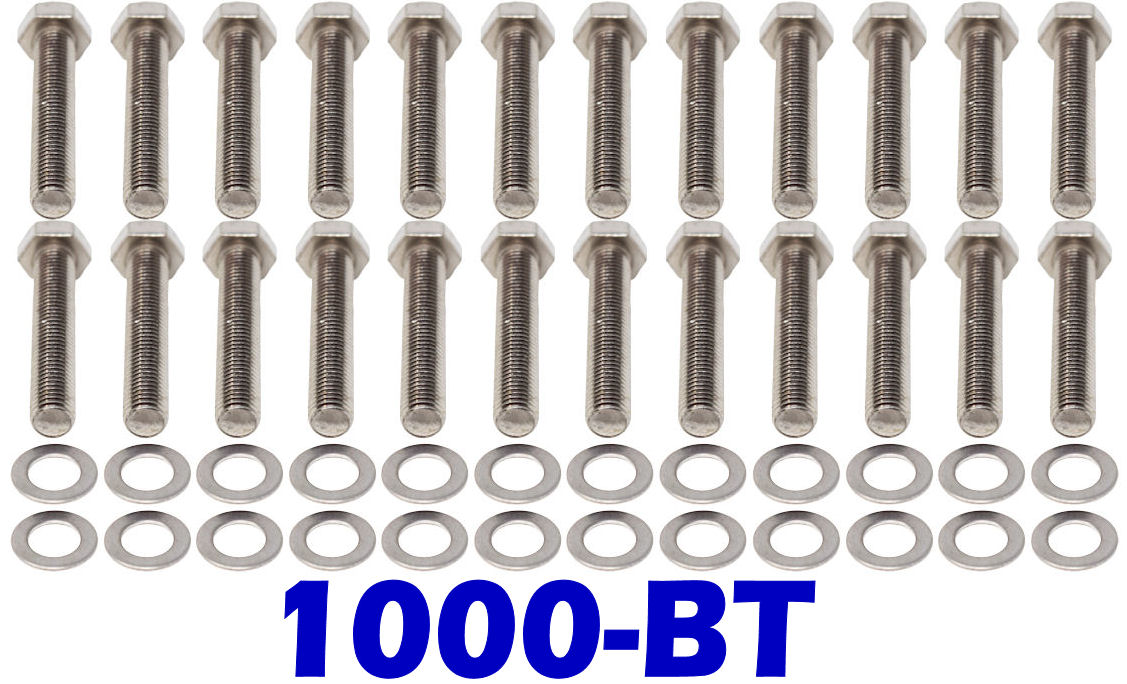

1000-BT
(24) Bolts & Washers
Fits:
10" OD Conflat
With TAPPED Holes

1000-BT
Fits: 10" OD CF Conflat Flanges With TAPPED Hole
24 Bolt and Washer Kit

• Weight: 1.75 lbs
• Del Seal Conflat Flange (CF) Equivalent
• 18-8 Stainless Bolts
• DN200CF (10") TAPPED Hole Bolt Kit
• Ultra-High Vacuum (UHV) Hardware

Order 12-Point Bolt Kit (1000-BT-12)


1000-BT Series Bolt Kit Fits:
10.00" OD Non-Rotatable Tapped CF Flanges
10.00" OD Rotatable Tapped CF Flanges

Maximum Torque for Vacuum Tight Seals

3.38" -16.50" OD

26 ft/lbs.

Over-torqueing can result in broken bolts




Bolt & Washer Kit
Fits: 10" Conflat
Tapped Hole
(1000-BT)

1000-BT$26.00

Click to enlarge
Click to enlarge
10" OD Conflat Series Hardware


Anti-Seize Stick


Click to enlarge
Click to enlarge
10" OD Conflat
Non-Rotatable
TAPPED Hole Series



10" OD Conflat
Rotatable
TAPPED Hole Series
