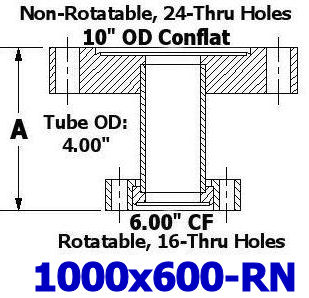

Click to enlargeReducing Nipple
10" OD Conflat To 6.00" OD Conflat
A: 5.00"

1000x600-RN
10" Conflat to 6.00" Conflat Straight Reducer

• 1000x600 CFF (DN200CFxDN100CF)
• 4" Tube OD
• 304 Stainless
• OD Polish
• Flange to Flange UHV Vacuum Adapter
• CFxCF Straight Reducing Nipple

6.00" OD Conflat Flange (CF):
• Rotatable
• 16-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

6" OD Conflat (600CFF) Equivalents
• CF100, CF600, DN100CF, NW100CF, 600CF


10.00" OD Conflat Flange (CF):
• Non-Rotatable
• 24-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

10" OD Conflat Flange (CFF) Equivalents:
CF200, CF1000, DN200CF, NW200CF, 1000CF
1000x600-RN Compare to: P102223 5000436 RN1000X600 2NR-1000-600 10" x 6" 600x1000-RN 1000x600-RN-VE


10.00" CF to 6.00" CF
Straight Reducing Nipple
1000x600-RN

1000x600-RNPrice: $1,214.81Sale: $696.00
