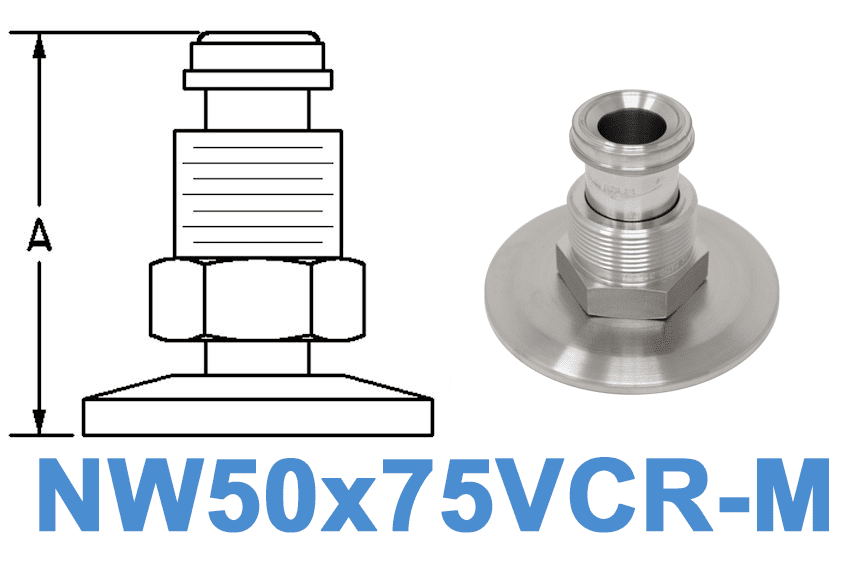

Click to enlargeNW50 to 3/4" VCR, Male
2.05" Overall Length

NW50x75VCR-M
NW50 (KF50, QF50) Flange OD: Ø2.95"
• NW50 to 3/4" (0.75") Male VCR Adapter
• NW50 to Male 12 VCR (VCR12)

• 304 Stainless
• Images Shown For Reference Only

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF
NW50x75VCR-M Compare to: NW50x75VCRM 414063 K200-VCR75 QF50X75VCR-M 100319136 P101384 4000312 QF50XMVCR75-2.15


NW50 to 3/4" VCR, Male
(NW50x75VCR-M)

NW50x75VCR-MPrice: $188.29Sale: $166.00

Click to enlarge
Click to enlarge
All NW50 Hardware


VCR Copper Gaskets


Click to enlarge
Click to enlarge
NW VCR, Male (All)


NW VCR, Female (All)



VCR Reference Guide

1/8" = VCR2



1/2" = VCR8

1/4" = VCR4

3/4" = VCR12

3/8" = VCR6

1" = VCR16

**NW50 Flange Accessories Available Below**
NW50 Centering Rings
NW50 Clamps, All Types
NW50 Plastic Caps

**VCR Copper Gaskets Available Below**
VCR Copper Gaskets, All Sizes

Contact LDS Vacuum with any questions:
Phone (407)862-4643 via Fax (407)862-8723 or
info@ldsvacuum.com

LDS Vacuum Products is a 100% woman owned company and
certified Woman Owned Small Business (WOSB)
The logos and/or trademarks appearing on this page are not owned by or registered to LDS but, rather, designate products sold by LDS, and are owned and/or registered to the manufacturers or suppliers of the products.
VCR® is a registered trademark of Cajon Company
