Click to enlargeNW40 Flexible Metal Hose
48" OAL


NW40-150-MH48

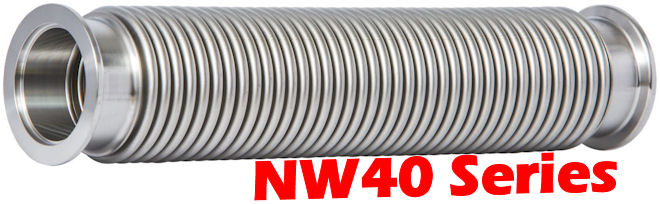

NW40 to 48" Flexible Metal Hose (Bellows)
48" OAL

• NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"
• Nominal Hose ID: 1.5"
• 304 Stainless Vacuum Hose
• Hydraulically Formed (Hydro) High Vacuum Bellows
• NW40 Flexible Coupling (Nipple)
• Thin Wall: 0.006"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF

Image Shown For Reference Only
NW40-150-MH48 Compare to: MHT-QF-C48 QF40-150-B-48.0 UB-KFRLT-150-48F2 0800027 441527 NW40-150-MH48-VE NW40-MH48-VE NW40-150-MH48-OS


48" Metal Hose NW40
(NW40-150-MH48)

NW40-150-MH48Price: $527.00Sale: $273.00

Click to enlarge
Click to enlarge
Thin Wall
Additional Lengths, NW40



Medium/Thick Wall
Additional Lengths, NW40



Click to enlarge
All NW40 Hardware



NW40 Flange OD: Ø2.18"
NW40 Hose ID: 1.50"

***NW40 Flange Accessories Available Below***
NW40 Centering Rings
NW40 Clamps, All Types
NW40 Plastic Caps
