Angle Inline Valve
Manually Operated
0.75" OD Tube Ends
COPPER Bonnet

MAIVC-075

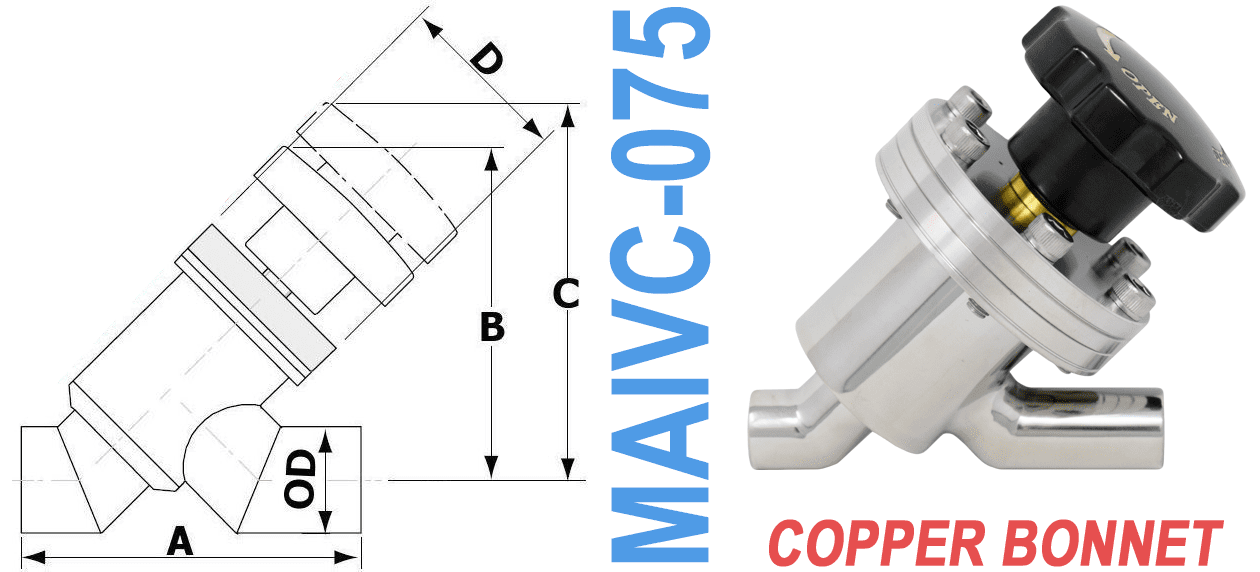

3/4" Tube End Angle-Inline Vacuum Valve
Manual Bellows Sealed SS Inline Valve
Copper Bonnet

• A: 3.70"
• B: 3.88"
• C: 4.76"
• D: 2.75"

Copper Bonnet
• UHV Ultra High Vacuum Valve Vacuum Valve
• UHV Sealed Angle In-Line Poppet Valve
• Bakeable to 150°C (200°C intermittently)
MAIVC-075 Compare to: CAIV-075


0.75" OD Tube End
Manual Angle Inline Valve
(MAIVC-075)

MAIVC-075$420.00

Click to enlarge
Click to enlarge
1.33" OD Conflat Flange


1.33" OD Conflat Flange


Click to enlarge
NW Compatible Weld Flanges
